12.1.3 StyleGAN Exploration

Overview

DCGAN Lesson 12.1.2 generates images from random vectors but doesn’t give you much control over what comes out. Change the seed, get a different image; that’s the only knob. StyleGAN, introduced by Karras, Laine and Aila at NVIDIA in 2018 [1] and refined in StyleGAN2 [2], introduced an architecture that separates the entangled “random vector” from the styled controls — and once that separation exists, you can navigate the space deliberately rather than just sampling from it.

The mechanism is conceptually simple. Before feeding the latent vector to the synthesis network, run it through an 8-layer fully-connected “mapping network” that produces an intermediate vector w. Inject w into the synthesis network at every resolution level via adaptive instance normalisation. The intermediate w ends up far more disentangled than the input z — different dimensions tend to control different visual features — which means you can interpolate, mix, and truncate in w-space and get predictable visual results.

This lesson uses a StyleGAN2 model trained on the African fabric dataset (same source as 12.1.2) to demonstrate the three operations that make this architecture famous: smooth latent walks, style mixing across layer ranges, and the truncation trick for trading diversity against quality.

Learning objectives

1. Distinguish StyleGAN’s intermediate w-space from the original z-space and explain why disentanglement matters for control.
2. Walk a path between two latent vectors and produce a smooth morphing animation; understand why the smoothness is a property of w-space, not interpolation magic.
3. Combine coarse features from one source with fine features from another via style mixing — and predict which layer ranges control which feature scales.
4. Apply the truncation trick to trade off diversity for quality; pick the right ψ value for a given use case.

Quick start — generate four fabrics from the trained model

The pre-trained checkpoint is hosted on a GitHub Release. Place it under models/african_fabrics/model_99.pt, then run the generation script.

from stylegan2_pytorch import ModelLoader
import torch

loader = ModelLoader(
    base_dir='./',
    name='african_fabrics',                  # expects models/african_fabrics/model_99.pt
)

noise = torch.randn(4, 512)                  # 4 latent vectors in z-space
images = loader.styles_to_images(loader.noise_to_styles(noise, trunc_psi=0.7))

for i, img in enumerate(images):
    img.save(f'fabric_{i}.png')

Four random vectors → four distinct fabric patterns. The trunc_psi=0.7 argument is the truncation trick at default strength; we’ll unpack what it does in Concept 4.

Core concepts

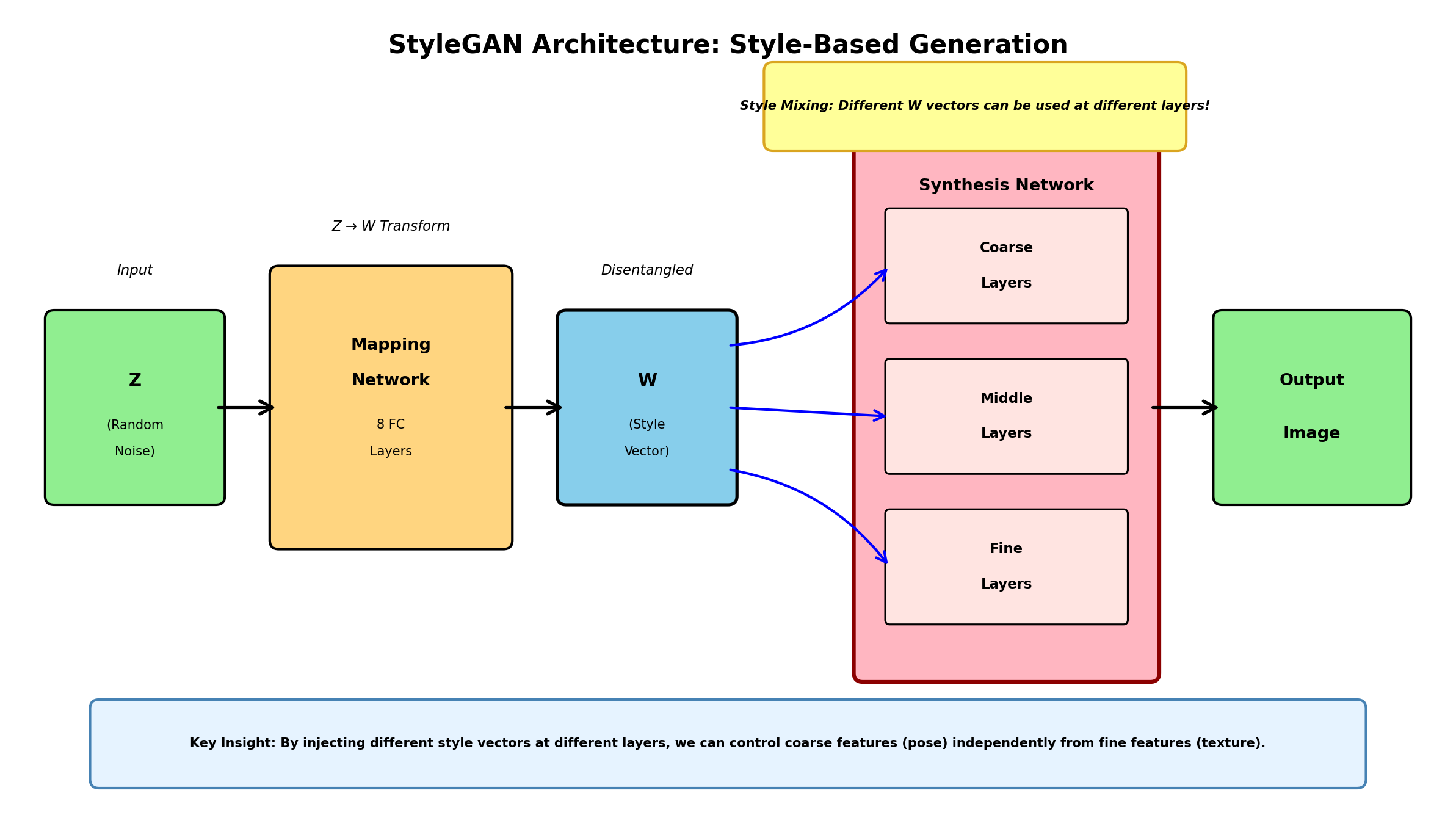

Concept 1 — From entangled z to disentangled w

DCGAN’s generator takes a random latent vector z ~ N(0, I) and runs it through transposed convolutions until an image emerges. Every dimension of z participates in every aspect of the output simultaneously — pose, colour, texture, and content are all entangled. Change one coordinate of z slightly and many visual features shift together; you can’t isolate “change the colour without changing the pose.”

StyleGAN [1] adds a small auxiliary network before the generator: an 8-layer fully-connected mapping network that transforms z into an intermediate latent vector w. Instead of feeding z directly to the synthesis network, the architecture feeds w into every resolution level via adaptive instance normalisation. The mapping network has no architectural reason to preserve z’s Gaussian shape, and during training it learns to map z into a more uniformly-distributed w where dimensions tend to align with semantically meaningful features.

The practical consequence: walks through w-space produce smoother visual transitions than walks through z-space, and individual w dimensions are far more likely to control isolated features. White’s survey of latent-space techniques [3] documents the difference quantitatively across multiple StyleGAN variants.

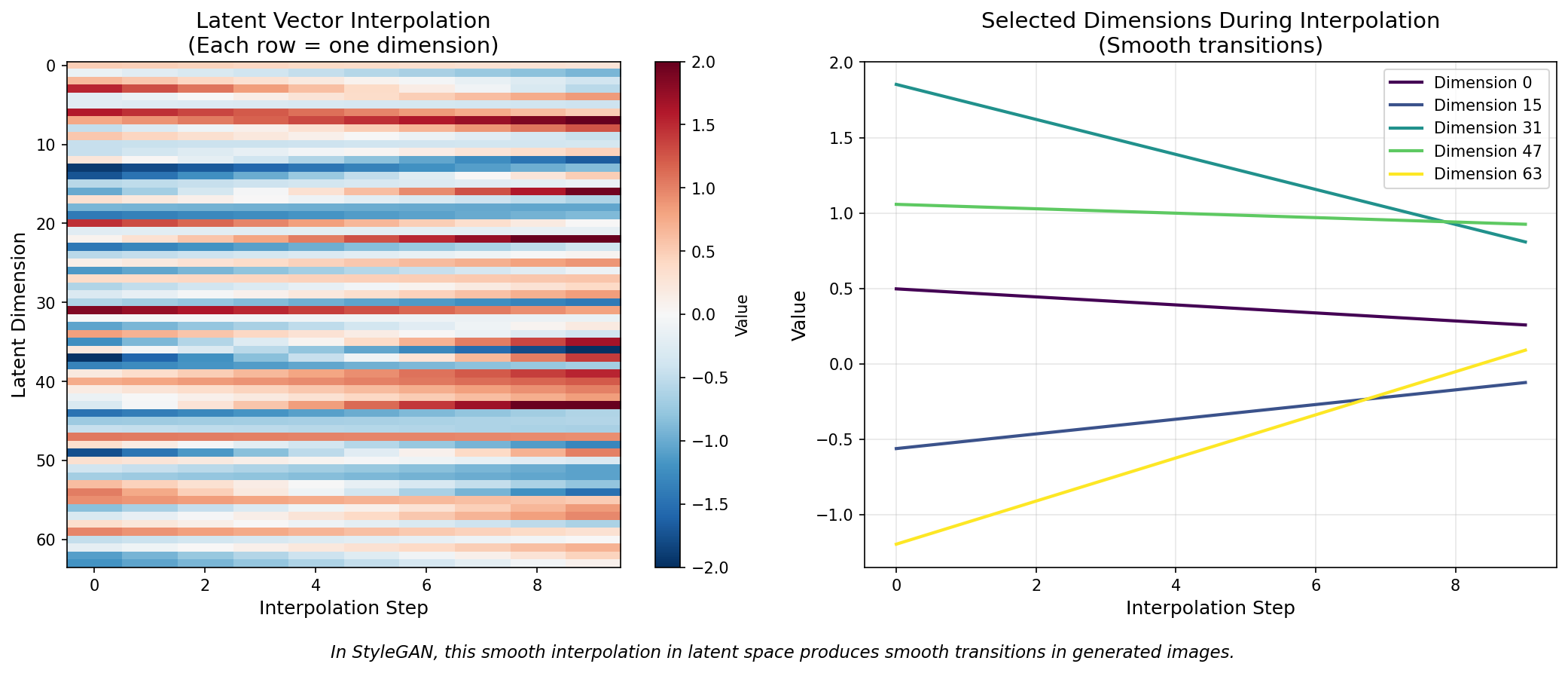

Concept 2 — Latent walks and the smoothness of w-space

Once you have a trained StyleGAN, the most basic creative operation is interpolation: pick two w vectors, walk a straight line between them, decode every step into an image. The intermediate frames form a smooth morphing animation because w-space is continuous in a way that matters — nearby points decode to similar images.

import numpy as np

def interpolate_w(w_a, w_b, steps=10):
    alphas = np.linspace(0, 1, steps)
    return [(1 - a) * w_a + a * w_b for a in alphas]

That’s the entire formula. The interesting question is why it works — the answer is the mapping network. The original z-space is a 512-dimensional Gaussian; straight lines through Gaussian space pass through low-density regions that the generator was rarely shown during training. w-space is more uniformly distributed (because the mapping network learned to make it so), so straight lines stay in regions the generator handles well.

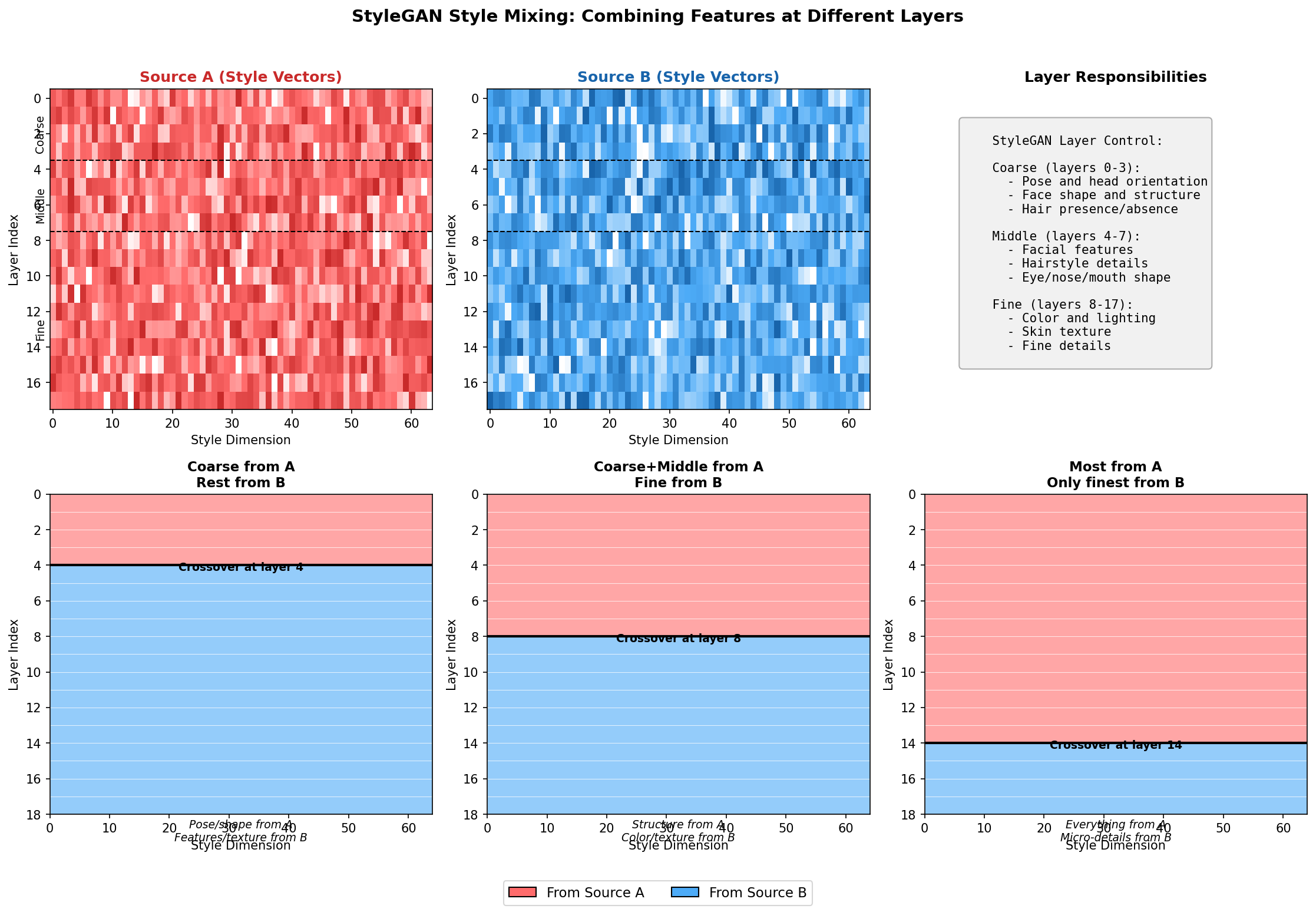

Concept 3 — Style mixing across layer ranges

StyleGAN injects w into the synthesis network at every resolution level — 4×4, 8×8, 16×16, 32×32, 64×64 (and beyond for larger models). Different layers control different scales of features. The trick that gives the architecture its name: use different w vectors at different layer ranges.

For a model that outputs 1024×1024 images (18 layers), Karras et al. [1] map the layer ranges to feature scales:

For the 64×64 fabric model in this lesson the structure is similar but compressed — early layers control overall pattern layout, later layers control colour and fine texture.

The implementation is direct: produce 18 w vectors per generated image (one per layer), and choose which source provides each one.

def mix_styles(w_a, w_b, crossover_layer, num_layers=18):
    mixed = w_a.clone()                              # take all from A initially
    mixed[crossover_layer:] = w_b[crossover_layer:]  # overwrite later layers from B
    return mixed

For the fabric model, mixing at layer 4 gives you the overall pattern structure of A with the colour palette of B. Mixing at layer 6 keeps less of A and more of B. The right crossover depends on what feature transfer you want.

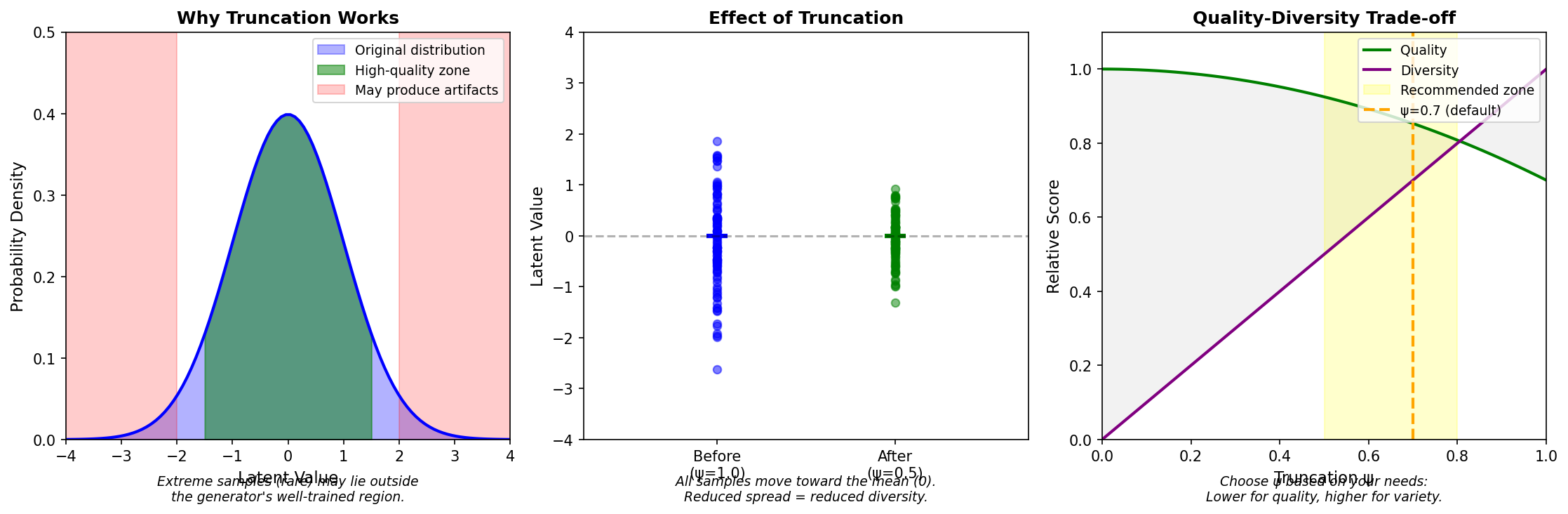

Concept 4 — The truncation trick: trading diversity for quality

Latent vectors sampled from N(0, I) are not all created equal. Most samples cluster near the mean — the regions where the generator saw the most training data and produces high-quality outputs. Samples from the tails of the distribution are rare both during training and during inference, and the generator’s behaviour there is less reliable; you’ll occasionally get artefacts, off-palette colours, or implausible structure.

The truncation trick [1] pulls every latent vector back toward the mean of the distribution before decoding:

w_truncated = w̄ + ψ · (w − w̄)

where w̄ is the mean of many sampled w vectors (computed once, after training) and ψ ∈ [0, 1] is the truncation parameter. ψ = 1.0 is no truncation (use the original sample); ψ = 0 is full collapse to the mean (every output is the same). Intermediate values trade diversity for reliability.

The conventional defaults: ψ = 0.7 for general-purpose generation, ψ = 0.5 for showcasing the model’s best work, ψ = 1.0 when you want the full diversity (and are willing to filter outputs manually). The fabric model in this lesson uses ψ = 0.7 in the quick start.

Exercises

EXECUTE I.

Generate 16 fabric patterns and compare two random seeds

model_99.pt — pre-trained StyleGAN2 checkpoint (189 MB) exercise1_generate.py — generates 4x4 grid at one seed

Drop the checkpoint into models/african_fabrics/model_99.pt, then:

bash Copy

pip install stylegan2-pytorch torch torchvision
python exercise1_generate.py

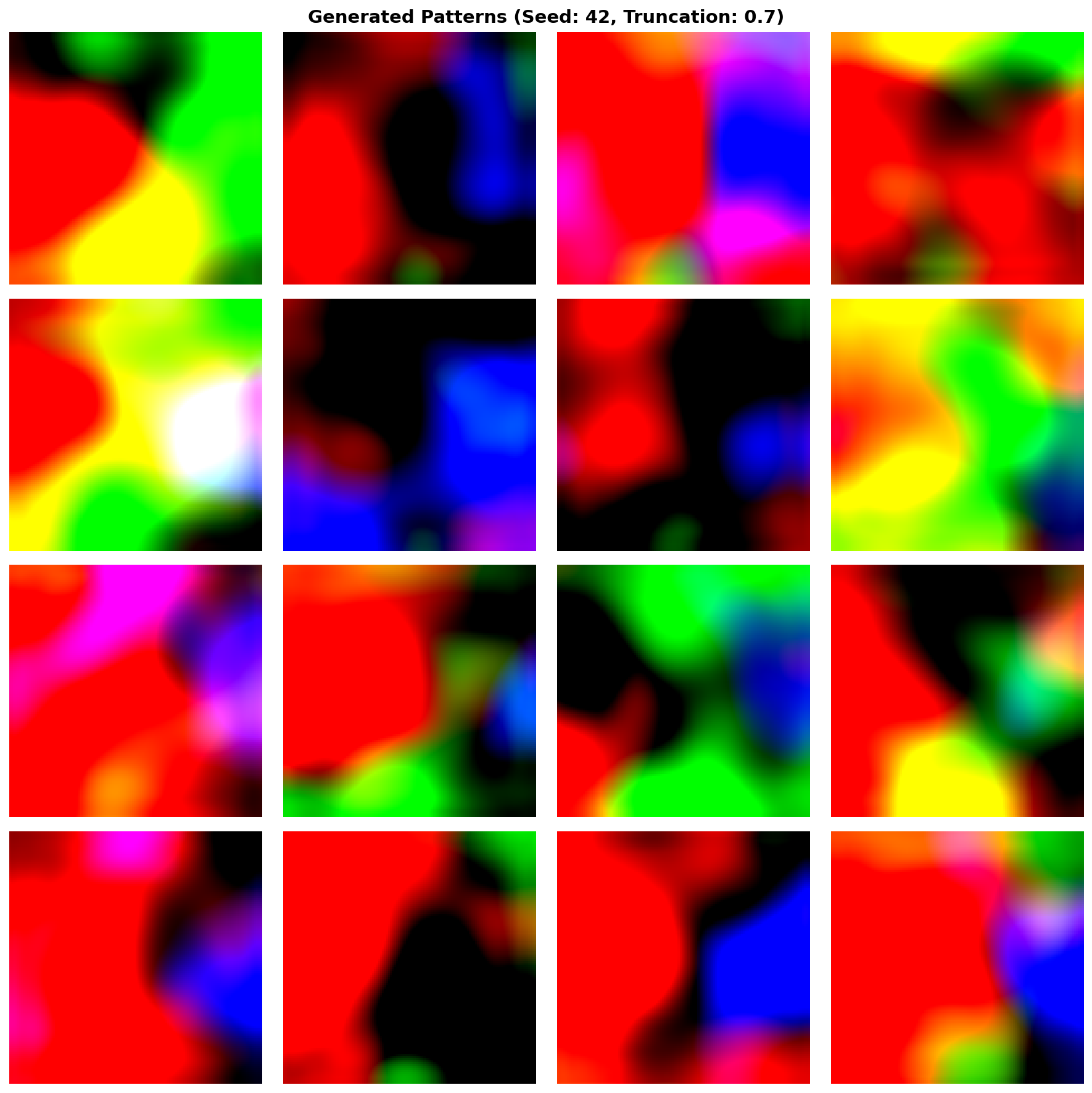

This produces generated_fabrics_seed42.png — a 4×4 grid of patterns sampled at ψ = 0.7. Open the script, change RANDOM_SEED = 42 to RANDOM_SEED = 100, and rerun. You now have two grids to compare.

Reflection

1. Every pattern in the two grids is unique, but both grids share an identifiable “African fabric” style. Which component of the StyleGAN architecture is responsible for the style consistency, and which is responsible for the per-sample variation?
2. The seed controls where in the 512-dimensional latent space we sample. Why does every point in this space produce a valid fabric pattern rather than occasional nonsense?
3. The model was trained on 1,059 fabric images. How can it generate visually distinct samples beyond what’s literally in the dataset?

Discussion

1. The style consistency comes from the trained weights of the synthesis network — those weights are the model’s notion of what fabric is. The per-sample variation comes from the latent vector z, which selects a specific point in the learned distribution. The mapping network sits between the two and shapes z into the disentangled w that the synthesis network actually uses.

2. Because the generator was trained adversarially against a discriminator on the entire N(0, I) distribution. Anywhere a sample could plausibly come from, the discriminator pushed the generator to produce something fabric-like. The truncation trick is the optional refinement that biases toward the higher-density regions for slightly more reliable output.

3. The model didn’t memorise; it learned the distribution. The 1,059 training images are samples from a much larger space of plausible African fabric patterns, and the trained generator interpolates and recombines features it observed to produce new samples in that same space. This is the entire premise of generative modelling.

MODIFY II.

Truncation sweep and morphing animation

exercise2_explore.py — truncation comparison + morphing animation

bash Copy

python exercise2_explore.py

Produces three files:

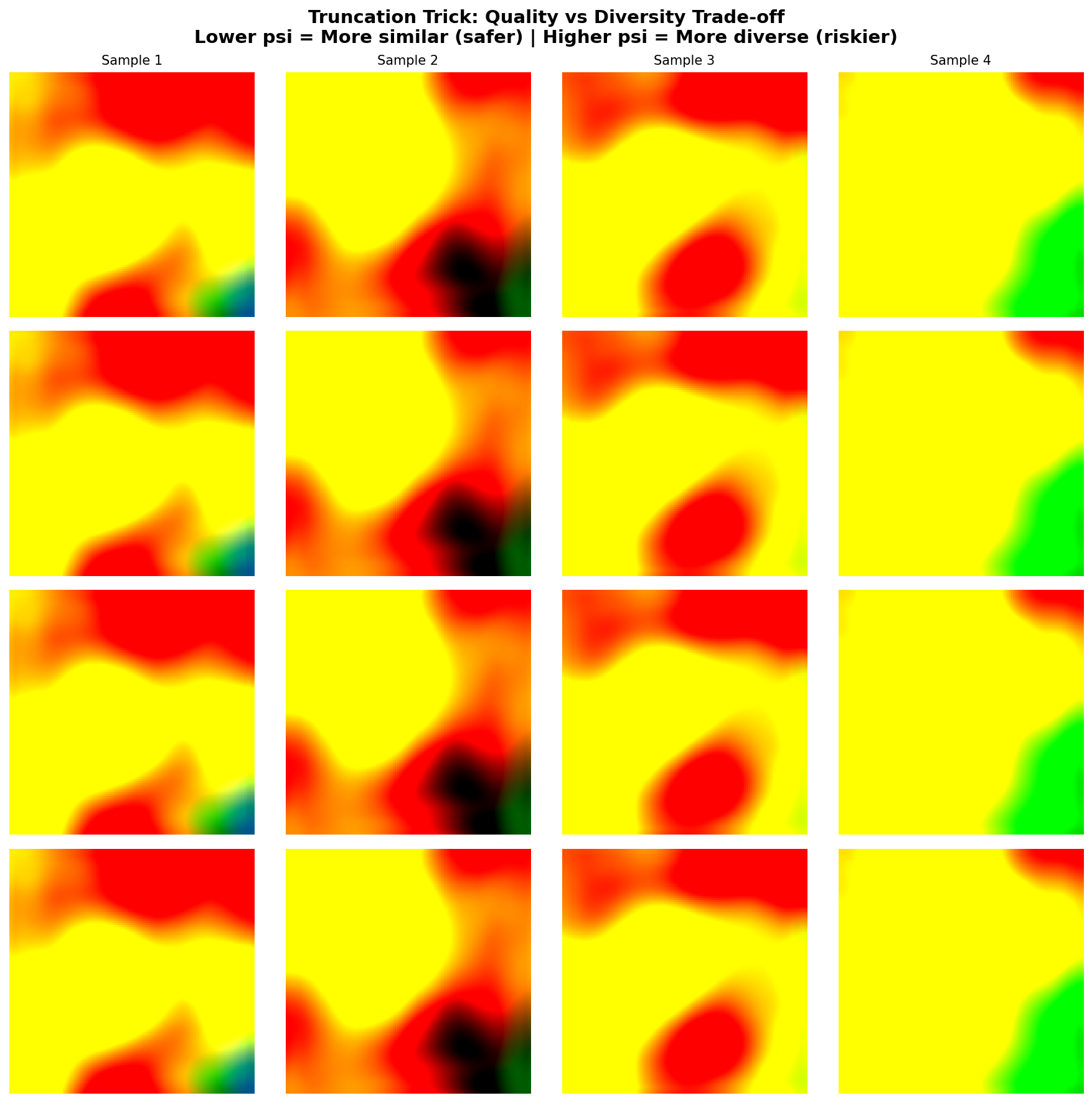

• truncation_comparison.png — same 4 seeds at 4 truncation values (Figure 5).
• fabric_morph.gif — smooth interpolation between two w vectors.
• morph_endpoints.png — the start and end frames of the morph, side by side.

Goal 1 — Truncation tuning. The script generates at ψ ∈ 1. Compare the grids: which ψ produces the most visually pleasing results for you? There’s no universal answer — the “right” ψ depends on whether you prioritise quality or diversity for your specific application.

Goal 2 — Different morph endpoints. Edit the script:

SEED_A = 777     # try other starting patterns
SEED_B = 2024    # try other ending patterns

Goal 3 — Custom truncation values. Try TRUNCATION_VALUES = [0.2, 0.4, 0.6, 0.8] to see the finer-grained progression.

What to expect — truncation

At ψ = 0.3 the four outputs look almost identical — high consistency, low variation. At ψ = 0.5 you have noticeable variation while every sample still looks clean. ψ = 0.7 (default) gives meaningful diversity; ψ = 1.0 shows the model’s full range, but you’ll occasionally see samples with off-palette colours or implausible structure.

What to expect — morphing

The morph between two w-space vectors should look continuously plausible — no jarring transitions, no garbled intermediate frames. If you see a clear discontinuity in the middle of the morph, you’re likely interpolating in z-space rather than w-space; switch to interpolating in w and the smoothness should return.

What to expect — endpoints

Very distant seeds (e.g. 1 and 999999) sometimes produce morphs that pass through an unusual intermediate region — recognisable as the chord through w-space that connects two distant points. The animation may briefly look “in-between styles” rather than smoothly transforming. This is one place where w-space disentanglement isn’t perfect; modern StyleGAN variants have improved on it.

python exercise3_generate.py

python exercise3_train.py

TRUNCATION = 1.0     # max diversity
TRUNCATION = 0.7     # balanced (default)
TRUNCATION = 0.5     # higher quality, less variation

NUM_IMAGES = 16      # 4x4 default
NUM_IMAGES = 25      # 5x5
NUM_IMAGES = 64      # 8x8 — wallpaper material

Summary

Common pitfalls

• Interpolating in z-space instead of w-space. The morphs will be visibly less smooth and may pass through bad regions.
• Using ψ = 0.3 because “high quality is good.” You’ll get nearly-identical outputs and the model’s range disappears.
• Crossover layers off by one. Layer 0 vs layer 1 vs layer 2 makes a real difference in which features get inherited from which source.
• Forgetting that truncation is computed against the mean w̄, not the origin. The script samples thousands of w vectors to estimate w̄ once; if you skip that, truncation pulls toward zero instead of toward the trained distribution centre and outputs degrade.
• Confusing model.eval() with model.train() mode. AdaIN behaves differently between modes; always evaluate in eval.
