12.3.2 ControlNet Guided Generation

Overview

Lesson 12.3.1 trained a DDPM that generates from pure noise — controllable by nothing other than the random seed. Lesson 12.5.1 added text conditioning to a pre-trained Stable Diffusion via DreamBooth: now the model responds to prompts but the structure of generated images is still up to the model’s prior.

ControlNet, introduced by Zhang, Rao and Agrawala at ICCV 2023 [1], adds the missing axis: structural conditioning. Feed the model a Canny edge map, a depth map, a pose skeleton, or any other spatial signal alongside the text prompt, and the output respects that structure while filling in everything else from the text. The headlining demo: take an edge map of a horse, prompt “a photo of a horse in a desert at sunset,” get a photorealistic horse in a desert at sunset with exactly the outline of the input edge map.

The architectural trick that makes this work without retraining Stable Diffusion is the zero-convolution initialisation, which lets a trainable conditioning branch fade in from zero contribution during training — guaranteeing the original model’s capabilities are preserved on day one of fine-tuning. This lesson works through the architecture, demonstrates control with the Fill50k dataset, and combines ControlNet (structure) with a LoRA (style) for maximum-flexibility generation.

Learning objectives

1. Distinguish DDPM’s unconditional generation, DreamBooth’s text-conditional generation, and ControlNet’s spatial-conditional generation; predict which to use for which task.
2. Explain ControlNet’s “clone the encoder, freeze the original, link with zero convolutions” architecture and why each piece is necessary.
3. Apply different control types (Canny edges, line art, depth) and predict which control suits which use case.
4. Combine ControlNet’s structural control with a LoRA’s style control to achieve simultaneous content and style direction.

Quick start — generate fabric guided by edges

The pre-trained ControlNet checkpoint for the Fill50k dataset is on the GitHub Release. The Stable Diffusion v1.5 base model is downloaded automatically on first run via diffusers.

import torch
from diffusers import StableDiffusionControlNetPipeline, ControlNetModel
from PIL import Image
import cv2, numpy as np

# Load ControlNet + base SD pipeline
controlnet = ControlNetModel.from_pretrained("./models/controlnet_fill50k")
pipe = StableDiffusionControlNetPipeline.from_pretrained(
    "runwayml/stable-diffusion-v1-5", controlnet=controlnet,
    torch_dtype=torch.float16,
).to("cuda")

# Build a Canny edge map from any image
image = cv2.imread("sample_inputs/circle.png")
edges = cv2.Canny(image, 100, 200)
edge_image = Image.fromarray(np.stack([edges]*3, axis=-1))

result = pipe(
    prompt="a vibrant african fabric pattern",
    image=edge_image,
    num_inference_steps=30, guidance_scale=7.5,
).images[0]
result.save("controlnet_output.png")

The output respects the edge map’s spatial structure (a circle, say) while filling in the colour and texture according to the prompt.

Core concepts

Concept 1 — Three axes of control: noise, text, structure

Place ControlNet in context with the previous generative-AI lessons:

Each step adds an axis without removing the previous ones. ControlNet doesn’t replace text conditioning — it layers spatial conditioning on top. The base Stable Diffusion model still produces text-conditioned output; ControlNet adds a constraint that the output’s spatial structure must follow the input control image.

The mechanical question is: how do you add this new conditioning to a 860M-parameter pre-trained model without retraining it from scratch and without breaking what it already does well? Zhang et al.’s answer [1] is the architecture in Concept 2.

Concept 2 — Clone, freeze, zero-init

ControlNet’s three structural moves:

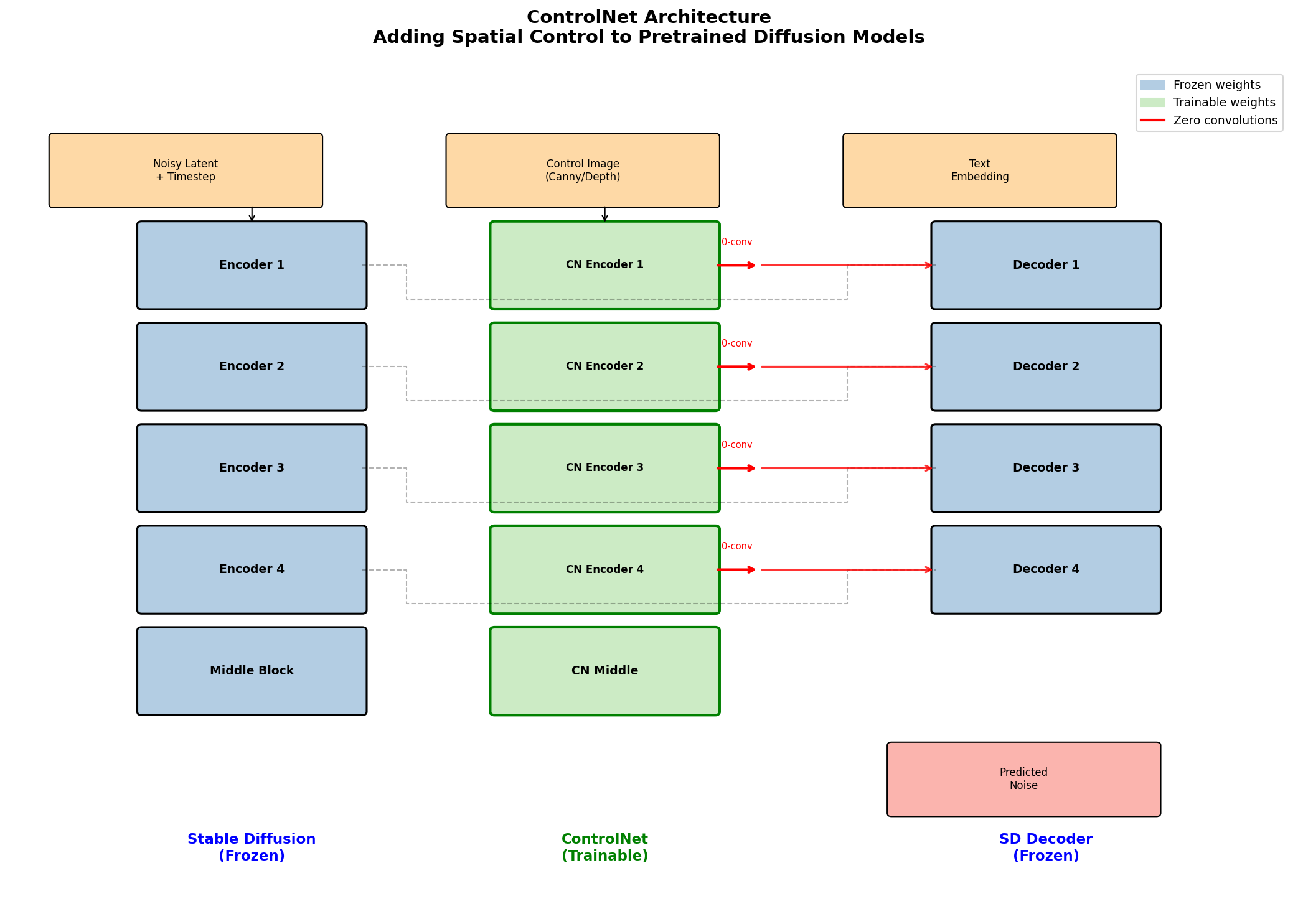

1. Clone the encoder. The U-Net inside Stable Diffusion has an encoder (downsampling) and decoder (upsampling). ControlNet creates a trainable copy of the encoder. This copy starts with the same weights as the frozen original, so it processes inputs identically to start with; only training will make them diverge.

2. Freeze the original. The pre-trained Stable Diffusion U-Net weights stay locked. Training only updates the cloned encoder + the linking layers. The full text-to-image capability the base model already has is preserved untouched.

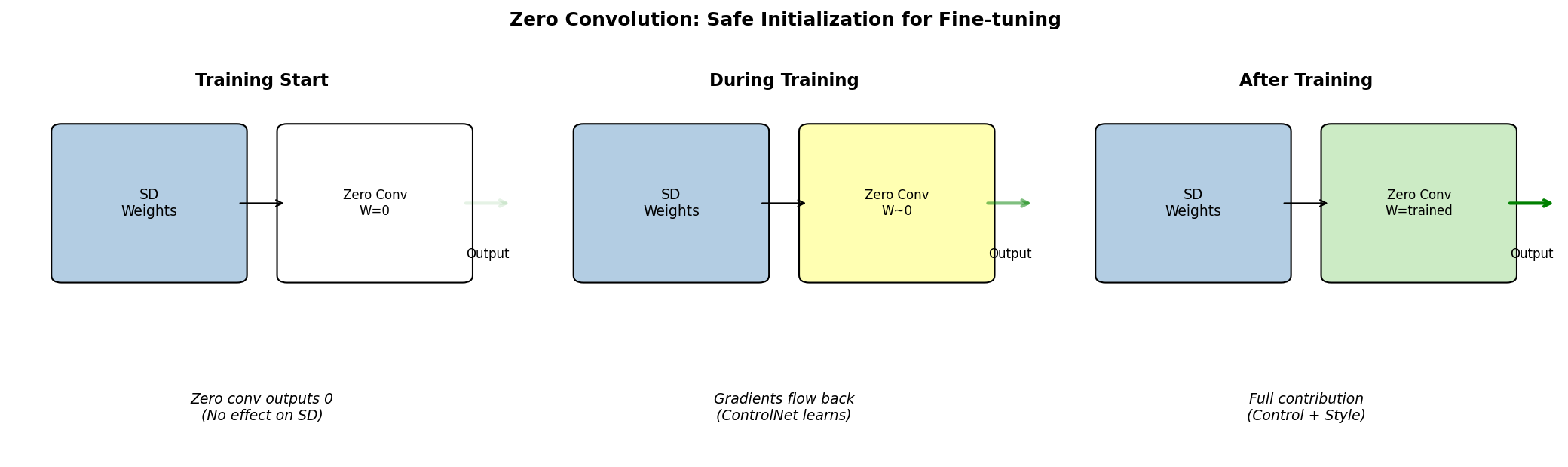

3. Connect with zero convolutions. The cloned encoder’s outputs need to feed back into the frozen decoder. The connection points are 1×1 convolutions initialised with all weights and biases at zero — so at the start of training the cloned encoder contributes literally nothing, the model behaves exactly like base Stable Diffusion, and as training progresses the zero convolutions learn appropriate scales for the conditioning signal.

The brilliance of this design is what it guarantees: on day one of training, ControlNet behaves identically to base Stable Diffusion because the zero convolutions force the conditioning branch’s contribution to zero. The model can only get better than baseline from there — gradient descent will discover useful conditioning patterns and update the zero convolutions away from zero where doing so reduces loss. The pre-trained capability is preserved by construction, not by careful regularisation.

class ZeroConv2d(nn.Conv2d):
    def __init__(self, in_channels, out_channels):
        super().__init__(in_channels, out_channels, kernel_size=1)
        nn.init.zeros_(self.weight)
        nn.init.zeros_(self.bias)

# Step 0: output = input * 0 + 0 = 0 — no effect on the frozen decoder
# After training: output = input * learned_weights + learned_bias

Concept 3 — Control types: pick the spatial signal that matches your task

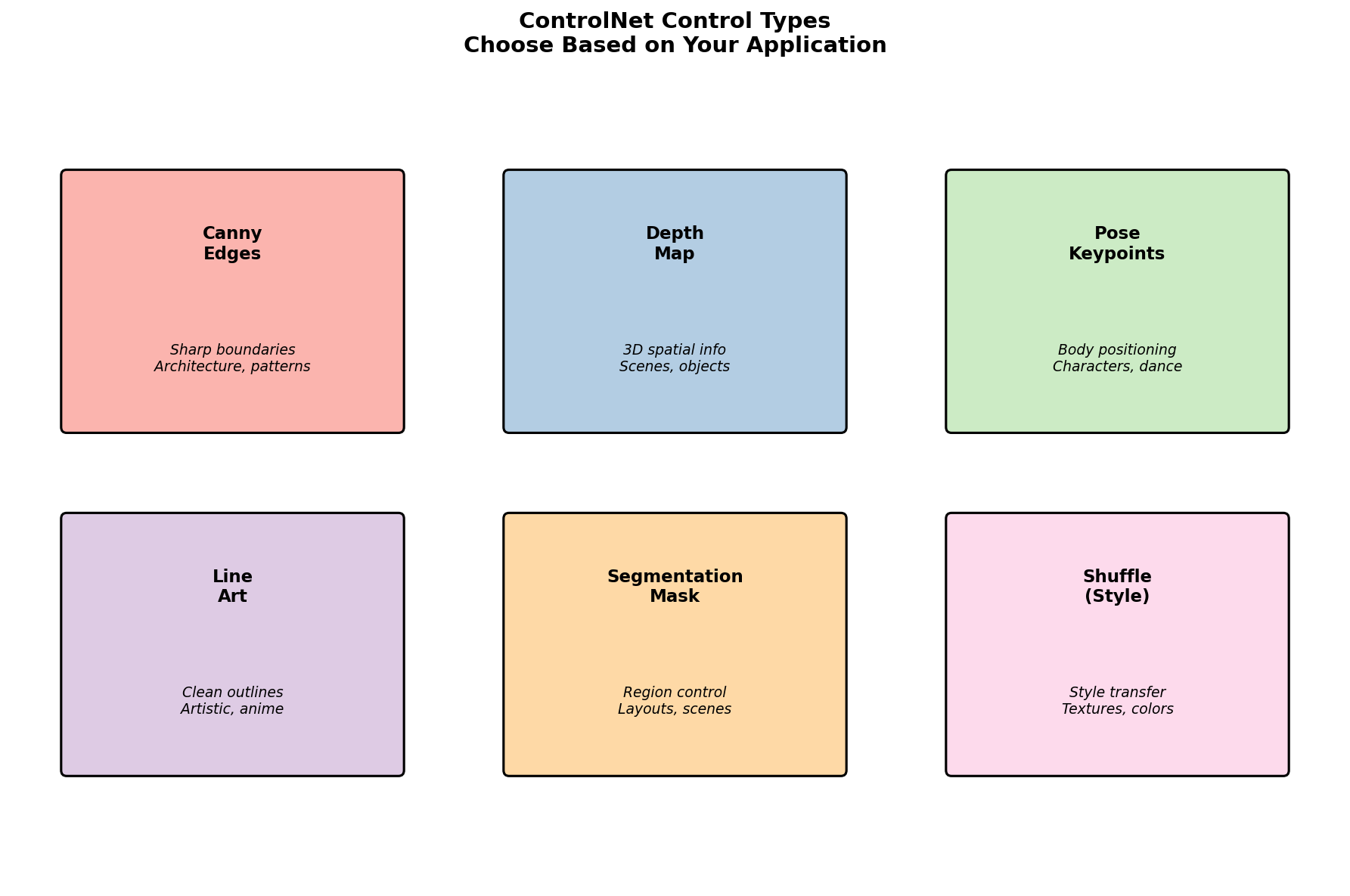

A trained ControlNet expects a specific control image format. The most common types, each with a corresponding pre-trained ControlNet checkpoint on Hugging Face:

Picking the right control type is half the work. Use Canny edges when your task is “render this object’s outline in a new style.” Use depth when you care about 3D plausibility. Use pose for character work. The fabric demonstration in this lesson uses Canny edges on circular masks — the simplest possible control signal for the simplest possible structural constraint.

Concept 4 — Tuning conditioning strength + combining with LoRA

Two run-time parameters tune how strictly the model follows the control signal:

controlnet_conditioning_scale (typically 0.5–1.5) — the multiplicative weight applied to the ControlNet’s contributions. 1.0 is the default training value; 0.5 halves the conditioning strength (letting the prompt assert itself more); 1.5 increases it (overriding the prompt where they conflict). Tune down if outputs look too rigidly locked to the control; tune up if the model is ignoring the control.

guidance_scale (typically 7.5) — the classifier-free guidance from text conditioning, same parameter as DreamBooth. Independent of ControlNet’s contribution. Use both together: higher CFG for stronger prompt adherence, higher conditioning scale for stronger structural adherence.

For maximum flexibility, ControlNet can be combined with a LoRA (Lesson 12.5.1). The ControlNet handles structure; the LoRA handles style; the prompt handles content semantics. All three operate independently on the same generation step:

pipe = StableDiffusionControlNetPipeline.from_pretrained(
    "runwayml/stable-diffusion-v1-5", controlnet=controlnet,
    torch_dtype=torch.float16,
).to("cuda")
pipe.load_lora_weights("./models/lora_african_fabrics")  # style

result = pipe(
    prompt="a sks african fabric pattern with geometric shapes",
    image=canny_edge_map,                                  # structure
    controlnet_conditioning_scale=1.0,
    guidance_scale=7.5,
    num_inference_steps=30,
).images[0]

Exercises

EXECUTE I.

Generate guided fabric patterns from Canny edge maps

controlnet_fill50k.pt — 1.38 GB ControlNet checkpoint exercise1_generate.py — Canny-edge-guided generation controlnet_utils.py — shared pipeline helpers

Place the checkpoint at models/controlnet_fill50k/, then:

bash Copy

pip install diffusers transformers accelerate xformers opencv-python
python exercise1_generate.py

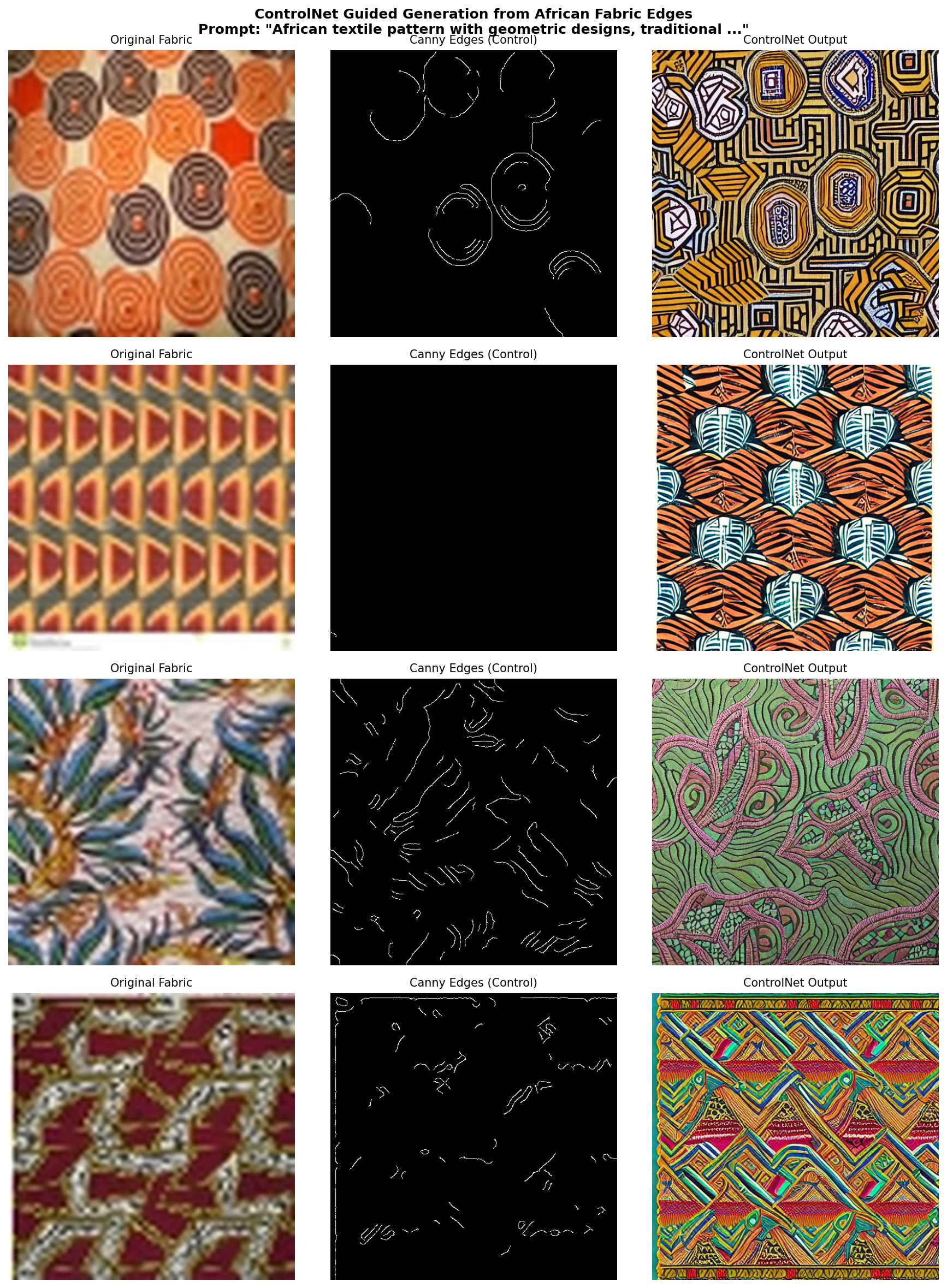

First run downloads Stable Diffusion v1.5 (~4 GB) from Hugging Face; subsequent runs are fast. Output: exercise1_output.png — a comparison grid showing the original sample, its Canny edge map, and the ControlNet-generated output that respects the edges.

Reflection

1. The generated output respects the edge map exactly but the colours and textures are completely different from the original. Which architectural property gives ControlNet this strict structural adherence?
2. Why does the first run download ~4 GB of weights? What’s not in the 1.38 GB ControlNet checkpoint?
3. The same edge map fed through the same model with two different text prompts produces structurally identical but stylistically different outputs. Which conditioning signal is doing which work?
4. If you fed an edge map from a photograph of a chair into a ControlNet trained on Fill50k circles, what would happen?

Discussion

1. The zero-convolution-linked encoder branch processes the edge map and adds its features to the frozen decoder’s computation; the training pressure during ControlNet’s training was to follow the control input exactly, so the conditioning branch has learned strong weights that pull the output toward the control. Tuning controlnet_conditioning_scale below 1.0 weakens this.

2. The 1.38 GB checkpoint is only ControlNet — the trainable encoder copy plus the zero-convolution links. The base Stable Diffusion U-Net, VAE, and CLIP text encoder are not included; they’re downloaded separately because they’re shared across thousands of fine-tunes/LoRAs/ControlNets and only need to be on disk once.

3. The edge map drives spatial structure; the text prompt drives colour, texture, and semantic content. The model’s training has cleanly separated these axes — the same edges with different prompts produce structurally consistent outputs with different content.

4. The output would still follow the chair’s edges, but the model has only learned to fill circle-shaped edges convincingly. Outside its training distribution, results will be erratic — the structure is followed, the content quality drops. This is why control-type-specific ControlNets exist for different content domains.

MODIFY II.

Three explorations: control strength, prompt variation, comparison

exercise2_explore.py — three explorations

bash Copy

python exercise2_explore.py

Goal 1 — Control strength sweep. Same prompt + same edges at controlnet_conditioning_scale ∈ {0.3, 0.6, 0.9, 1.2, 1.5}.

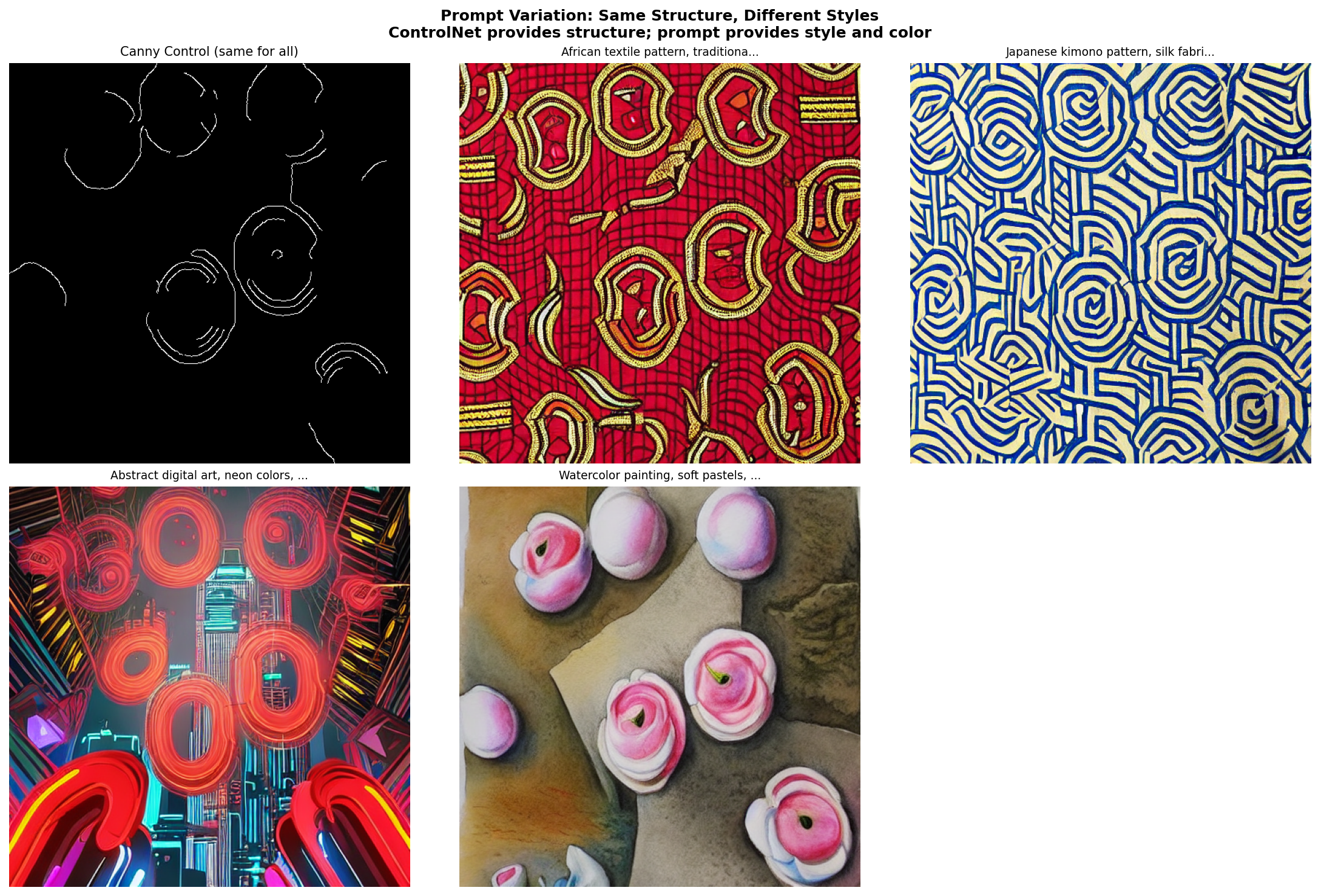

Goal 2 — Prompt variation. Same control + same strength, different prompts. The structure stays; the content changes.

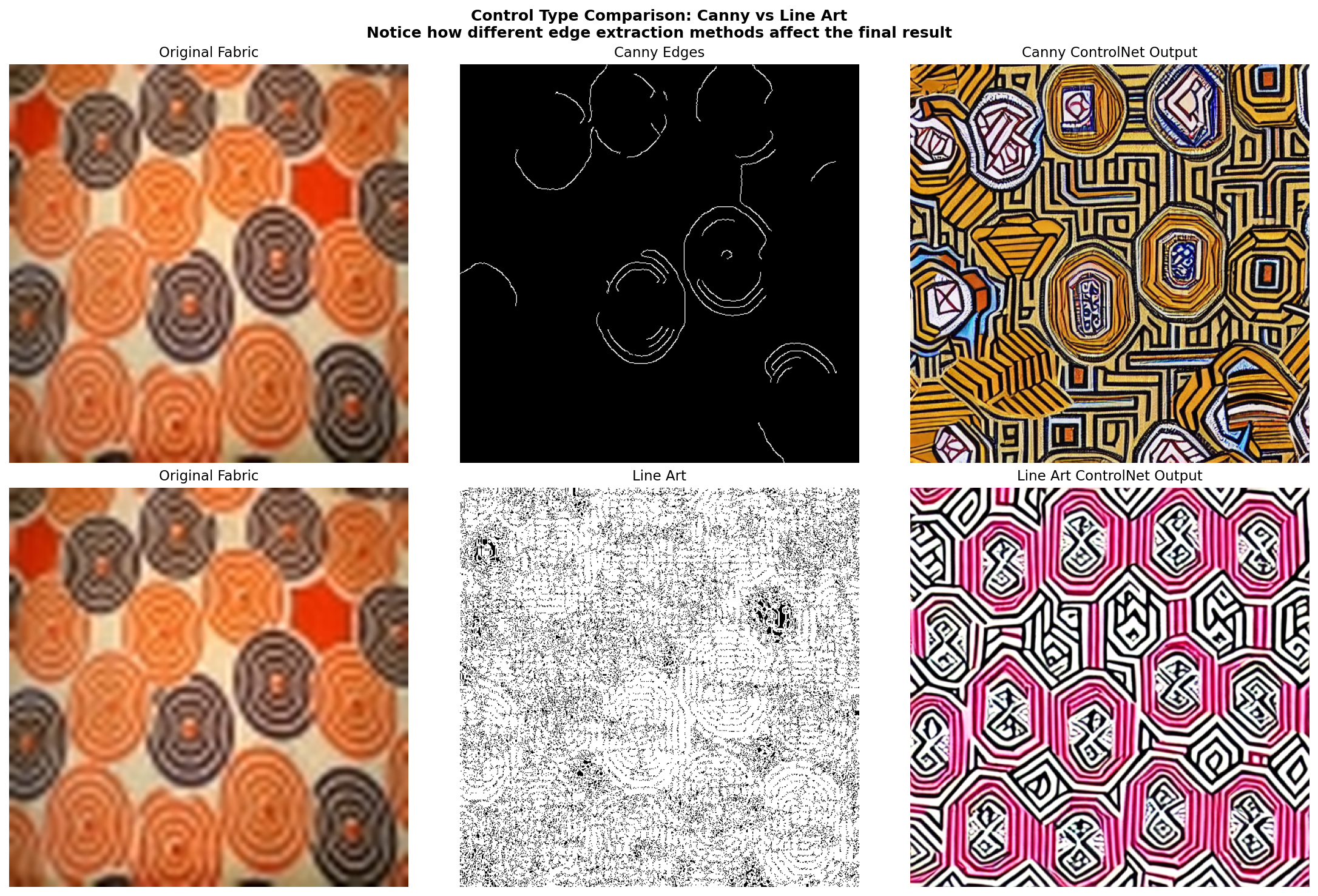

Goal 3 — Direct control-type comparison. Run the same content through Canny, Line Art, and Scribble ControlNets to see how the same scene reacts to different structural signals.

What to expect — control strength

At 0.3 the model treats the control as a hint and lets the prompt dominate. At 0.6–0.9 the control is followed loosely but consistently. At 1.0 (default) the control is enforced. At 1.2+ the control overrides the prompt in places of conflict; at 1.5+ the output can look slightly degraded as the model is pushed away from its prior.

What to expect — prompt variation

Structure is invariant to prompt; content varies completely. This is the demonstration of axis separation: the ControlNet handles “where,” the prompt handles “what.” Make this visible by tweeting a screenshot of the same circle with six radically different prompts — palette, texture, lighting all differ, the circle persists.

What to expect — control-type comparison

Canny preserves every edge, including ones you didn’t intend to enforce. Line art produces cleaner, more artistic-looking results. Scribble gives the model the most creative freedom because it’s the lowest-fidelity input. Choose based on what kind of control you actually want — strict, clean, or loose.

CREATE III.

Train ControlNet from scratch + LoRA style adaptation

Three scripts cover the full pipeline. Most learners should focus on Option C (combined generation) since it demonstrates the architectural payoff; Options A and B are deep dives for those with multi-hour GPU time available.

exercise3a_train_controlnet.py — train ControlNet from scratch (2-4h GPU) exercise3b_train_lora.py — train style LoRA on African fabrics (15-30 min) exercise3c_combined_generation.py — ControlNet + LoRA combined download_fill50k.py — fetches Fill50k dataset from Hugging Face

Option A — Train ControlNet on Fill50k (2-4 hours GPU)

Dataset: Fill50k from Hugging Face (50k circle-fill images, downloaded by download_fill50k.py). Architecture: the encoder of Stable Diffusion v1.5 cloned and trained with zero-convolution links.

python download_fill50k.py
python exercise3a_train_controlnet.py

Configuration: batch size 4, learning rate 1e-5, 50k training steps. Loss decreases monotonically (no adversarial dynamics). Checkpoints saved every 5k steps.

Option B — Train a style LoRA on African fabrics (15-30 min)

Same pattern as Lesson 12.5.1’s DreamBooth LoRA, retrained for this lesson against the African fabric dataset to produce a style LoRA rather than a subject LoRA.

python exercise3b_train_lora.py

Output: lora_african_fabrics.safetensors (~3 MB) that can be loaded alongside any Stable Diffusion v1.5 pipeline to apply the African fabric style to whatever is being generated.

Option C — Combine ControlNet + LoRA (recommended)

The architectural demonstration. Load both the Fill50k ControlNet and the African-fabric LoRA, then generate fabric-styled patterns that follow circle outlines.

python exercise3c_combined_generation.py

The ControlNet enforces structure (circles), the LoRA enforces style (African fabric texture and colour palette), the text prompt provides the semantic anchor.

Issue triage

OOM on Stable Diffusion + ControlNet — combined memory is ~10 GB. Enable pipe.enable_attention_slicing() and use torch_dtype=torch.float16 to halve memory.

Control is ignored — check controlnet_conditioning_scale. The default is 1.0; if it’s 0 or very low, the control branch does nothing.

Output ignores the prompt — controlnet_conditioning_scale may be too high (>1.5). The control is overriding the prompt; lower it.

LoRA + ControlNet doesn’t compose cleanly — confirm both target the same base model (SD 1.5). Mixing across base models silently degrades both.

Make it your own

Try a control type the pre-trained ControlNet wasn’t trained for (e.g. feed a depth map to a Canny-trained ControlNet). The output will still be generated but the structural adherence will be unpredictable. This is a useful exercise in understanding the limits of control-type specificity.

Summary

Common pitfalls

• Using a ControlNet trained for SD 1.5 with SDXL or SD 2.x — different U-Net architectures, incompatible weights.
• Feeding the wrong control format for the ControlNet checkpoint (e.g. line art into a Canny-trained ControlNet). The model will produce something, but the structural adherence breaks.
• controlnet_conditioning_scale = 0 (or near-zero) — the conditioning branch is effectively disabled and the ControlNet does nothing.
• controlnet_conditioning_scale > 2.0 — the control overpowers the prompt to the point of degrading the output. Stay in 0.5–1.5 for clean outputs.
• Combining a LoRA and a ControlNet trained against different base models. Both load, neither composes correctly, and the failure mode is subtle.
