12.2.2 Interpolation Animations

Overview

Lesson 12.2.1 trained a tiny VAE on four 16×16 line patterns and made a single 8-step interpolation between two of them. The interpolation worked, but the toy data limited what you could actually see — the morphs looked like line drawings sliding into each other.

This lesson scales the same idea up where it gets interesting. A convolutional VAE with a 64-dimensional latent space, trained on 2,000 procedurally-generated abstract patterns at 64×64 RGB, produces real morphing animations: colour fields shifting, textures dissolving, geometric structures reforming. The architecture is bigger but the recipe is the same — encode, walk the latent path, decode each step into a frame, save as GIF.

The training takes a few hours on a CPU and the pre-trained weights are 27 MB, so you’ll download them from a GitHub Release rather than retrain locally. The interesting work is on the interpolation side, where there’s actually a methodological choice to make.

Learning objectives

1. Explain why VAE latent spaces produce smoother morphing animations than GAN latent spaces.
2. Implement linear interpolation and spherical linear interpolation (slerp), and predict when each one matters.
3. Chain interpolations across multiple keypoints to produce seamless looping animations.
4. Estimate the trade-off between frame count, GIF file size, and perceived smoothness.

Quick start — load the weights, morph two seeds

Download vae_weights.pth from the GitHub Release and drop it next to vae_model.py. Then thirty frames of linear interpolation between two random latent vectors is fifteen lines of code.

import torch
import imageio.v2 as imageio
from vae_model import VAE, LATENT_DIM

vae = VAE(latent_dim=LATENT_DIM)
vae.load_state_dict(torch.load('vae_weights.pth', map_location='cpu'))
vae.eval()

torch.manual_seed(42)
z_start = torch.randn(LATENT_DIM)
z_end   = torch.randn(LATENT_DIM)

frames = []
for i in range(30):
    t = i / 29
    z = ((1 - t) * z_start + t * z_end).unsqueeze(0)
    with torch.no_grad():
        img = vae.decoder(z)
    img = ((img[0] + 1) / 2).clamp(0, 1).permute(1, 2, 0).numpy()
    frames.append((img * 255).astype('uint8'))

imageio.mimsave('my_animation.gif', frames, fps=15)

That’s Figure 1, give or take the random seed. The rest of this lesson is about the choices hiding inside that one-line interpolation expression and the loop wrapped around it.

Core concepts

Concept 1 — A bigger VAE, the same KL guarantee

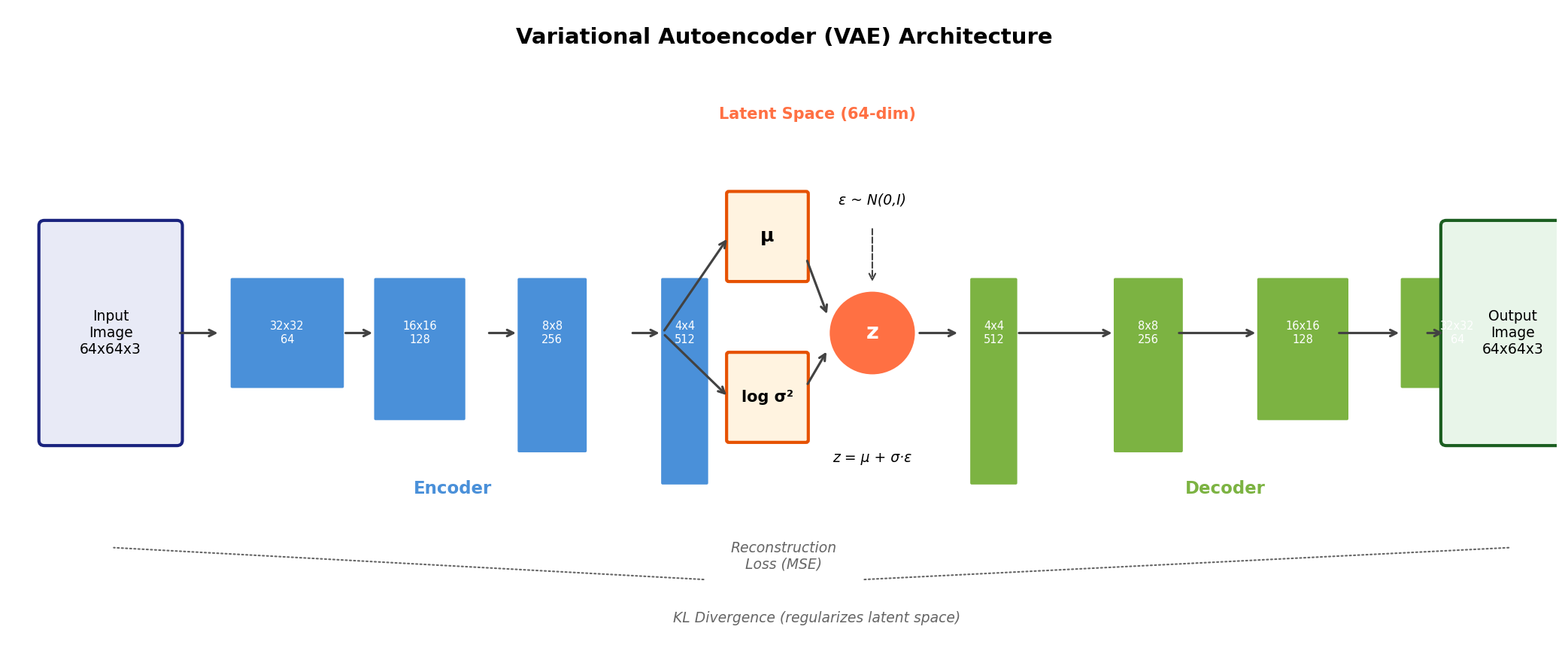

The architecture here is a step up from 12.2.1’s fully-connected toy. Four strided convolutions in the encoder take a 64×64×3 image down to 4×4×512, then two linear heads project to μ and log σ² in 64 dimensions. The decoder mirrors the encoder with four transposed convolutions back up to RGB output. Kingma and Welling’s original paper [1] sketched the architectural recipe; the convolutional details follow the same conventions DCGAN [2] uses for image generation.

What carries over from the toy is the property that does the work. The KL divergence term in the loss penalises the encoder for placing posterior distributions q(z|x) far from the prior N(0, I). The structural consequence — empty regions of latent space remain decodable, nearby points decode to similar outputs — is exactly what makes morphing animations possible. Bowman et al. [3] documented this property for text VAEs in 2016 and the same argument applies pixel for pixel here: walk a continuous path through latent space, get a continuous sequence of outputs. Higgins et al.’s β-VAE work [7] showed that the strength of the KL constraint, set by a β coefficient on that loss term, directly governs how smooth and disentangled the latent space becomes — a higher β buys you a tidier space for interpolation at the cost of reconstruction sharpness, exactly the trade-off you’d tune for animation work. Goodfellow, Bengio and Courville [8] survey the broader family these models belong to.

A GAN trained on the same data would produce sharper individual frames (the DCGAN lesson shows the difference) but the interpolation path would not have the same guarantee. GAN latent spaces have “dead zones” where the discriminator never pushed the generator to produce anything coherent. Pass through one mid-morph and you get a glitchy frame. VAEs trade some sharpness for that smoothness guarantee, and for animation that trade-off is usually the right one.

Concept 2 — Two paths between two points

Given two latent vectors z_a and z_b, the simplest path is a straight line — linear interpolation, parameterised by t ∈ [0, 1].

def linear_interpolate(z1, z2, t):
    return (1 - t) * z1 + t * z2

This is what Figure 1 uses, and for most VAE work it is enough. There is, however, a subtle wrinkle: in high-dimensional Gaussian spaces, the magnitude of z matters. A standard-normal vector in 64 dimensions has expected length √64 ≈ 8. The midpoint of a straight line between two such vectors has noticeably smaller magnitude — pulled toward zero by averaging. Decoded outputs at the midpoint can come out slightly less vivid than at the endpoints. White’s 2016 survey of sampling techniques in generative networks [6] documents this with specific examples.

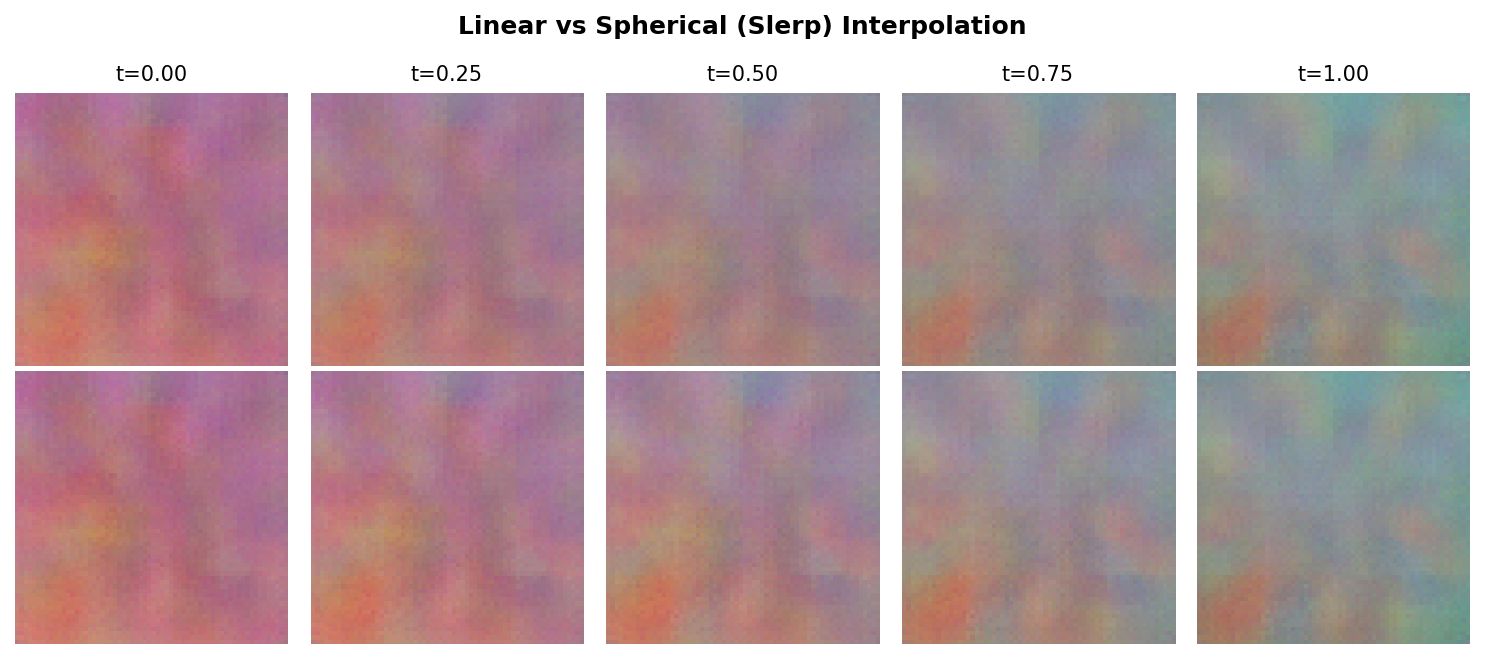

Spherical linear interpolation — slerp — fixes the magnitude drift by walking along a great-circle arc instead of a chord.

def slerp(z1, z2, t):
    z1_norm = z1 / (torch.norm(z1) + 1e-8)
    z2_norm = z2 / (torch.norm(z2) + 1e-8)

    dot = torch.clamp(torch.sum(z1_norm * z2_norm), -1.0, 1.0)
    omega = torch.acos(dot)

    if omega < 1e-6:                    # vectors nearly parallel - fall back to linear
        return (1 - t) * z1 + t * z2

    sin_omega = torch.sin(omega)
    c1 = torch.sin((1 - t) * omega) / sin_omega
    c2 = torch.sin(t * omega) / sin_omega
    return c1 * z1 + c2 * z2

The 1e-8 and the omega < 1e-6 guard handle the cases where the formula would otherwise divide by zero — nearly-zero vectors and nearly-parallel vectors. Without them, occasional latent pairs produce NaN frames mid-animation.

The decision rule is short. Use linear by default, and reach for slerp when (a) the latent vectors have been explicitly normalised, (b) the magnitude of z correlates with output intensity in your model, or (c) the endpoints are far apart in latent space. For everything else, the linear midpoint dimming is small enough to not be worth the extra code.

Concept 3 — From a single morph to a seamless loop

A single interpolation between two endpoints is one segment. A more interesting animation chains several segments together — visit four random keypoints, then return to the first to close the loop.

keypoints = [torch.randn(LATENT_DIM) for _ in range(4)]
keypoints.append(keypoints[0])               # close the loop

frames = []
for i in range(len(keypoints) - 1):
    seg = generate_frames(decoder, keypoints[i], keypoints[i+1], num_frames=15)
    # Drop the last frame of every segment except the final one — otherwise
    # the same image appears twice at each keypoint and the loop stutters.
    if i < len(keypoints) - 2:
        seg = seg[:-1]
    frames.extend(seg)

imageio.mimsave('loop.gif', frames, fps=15, loop=0)

Two non-obvious details. The duplicate-frame trim (seg = seg[:-1]) prevents a visible stutter at every keypoint; without it, the same decoded image appears as the last frame of segment i and the first frame of segment i+1. The loop=0 argument to imageio.mimsave tells GIF decoders to loop forever rather than playing once and stopping.

Frame count is the other knob worth understanding. Roughly: 5–10 frames per segment looks visibly choppy, 15–20 is the sweet spot for ~250 KB GIFs, 30+ is butter-smooth but file sizes balloon. Most public morphing demos on platforms like Twitter and Bluesky stay in the 15–20 range for this reason — the diminishing visual return doesn’t justify the bandwidth.

Exercises

EXECUTE I.

Generate the 30-frame morph and four sample frames

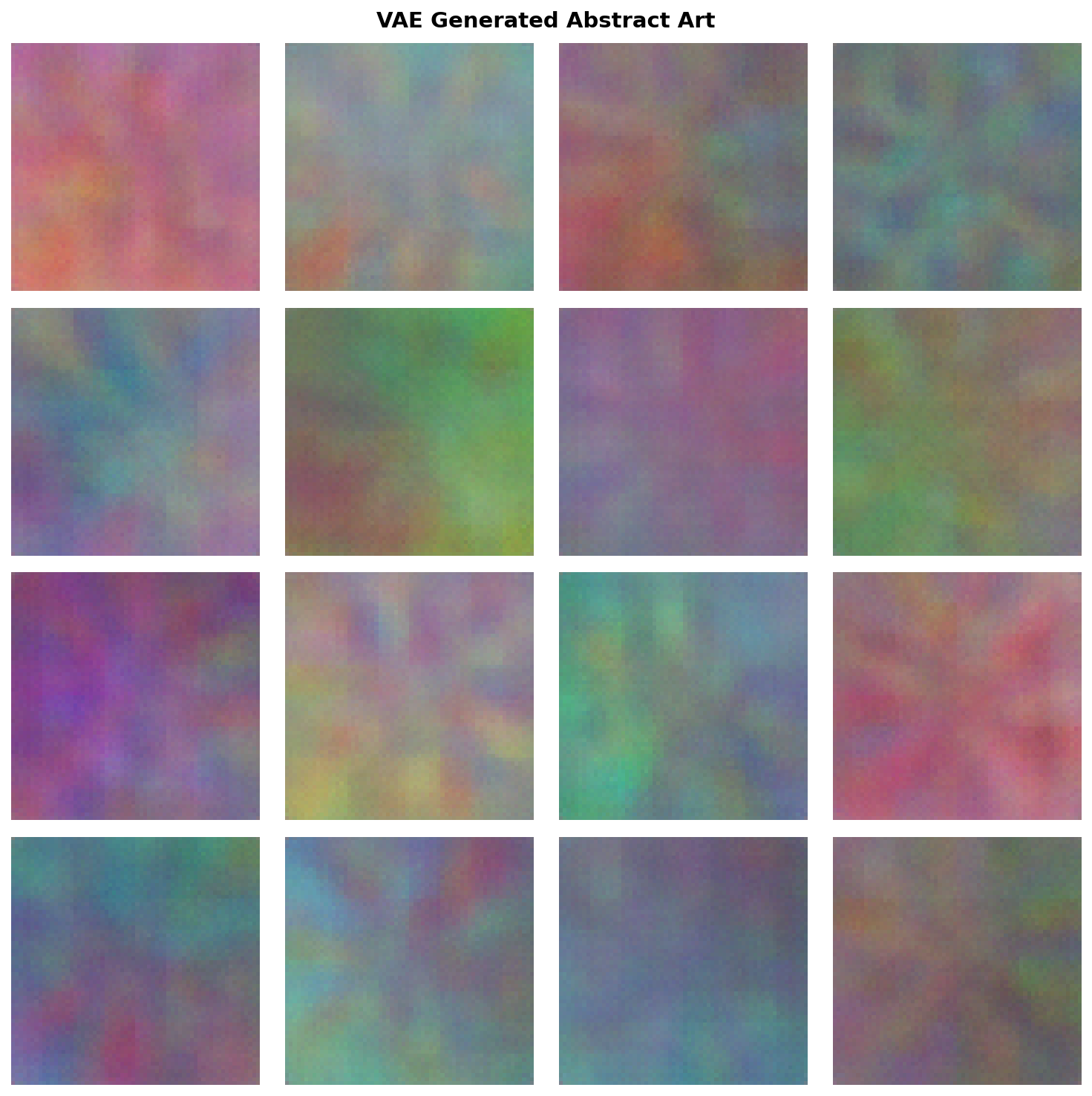

Two scripts. vae_generate.py draws four random latent vectors and decodes them — useful sanity check that the loaded weights produce coherent output. vae_interpolate.py is the full animation pipeline.

vae_weights.pth — pre-trained 27 MB checkpoint (download once, reuse for E1-E3) vae_model.py — convolutional VAE architecture vae_generate.py — generate four random samples vae_interpolate.py — full interpolation pipeline

bash Copy

python vae_generate.py       # writes sample_1.png .. sample_4.png + generated_samples.png
python vae_interpolate.py    # writes interpolation_animation.gif + interpolation_strip.png

Reflection

1. How does this VAE morph differ from the DCGAN latent walk? What property of the loss function explains the difference?
2. Looking at the animation in Figure 1, are there any discontinuities or “jumps”? Where would you expect them if there were any?
3. What features of the pattern stay coherent across the morph (palette, overall composition) and what features change discontinuously (sharp lines, hard edges)?

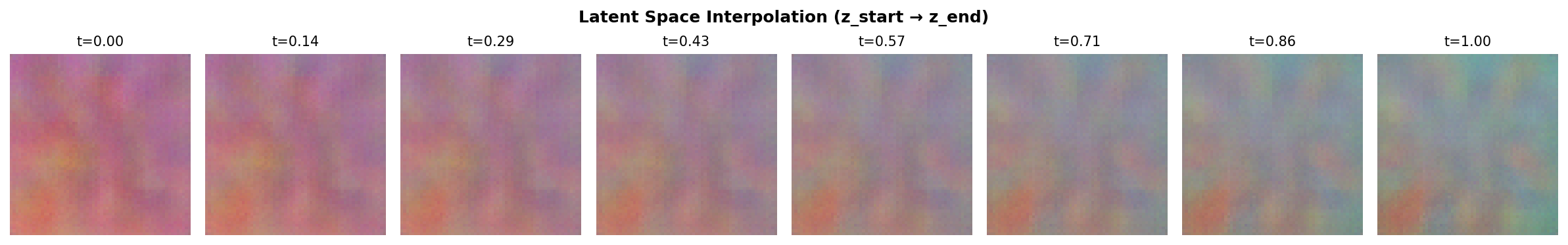

4. Why does the midpoint of the strip in Figure 4 sometimes look slightly washed out compared to the endpoints?

Discussion

1. The VAE morph is smoother because the KL term in the loss explicitly regularises the encoded distribution q(z|x) to overlap with the prior N(0, I) everywhere — there are no “dead” regions for the path to pass through. DCGAN’s loss has no such constraint, so the discriminator’s “real-looking” region in latent space can be irregular, with garbage zones the generator was never pushed to fix.

2. There should be none. If you spot one, the most likely cause is an off-by-one in the frame loop (i / num_frames instead of i / (num_frames - 1)) or a missing .detach() in a path you accidentally re-enabled gradients on. Truly discontinuous outputs from a trained VAE on a non-pathological path are very rare.

3. Palette and rough composition stay coherent because they correspond to slowly-varying components of the latent representation. Sharp edges and high-frequency details are the parts the VAE has the hardest time reconstructing in the first place (the blurriness from Lesson 12.2.1), so they tend to soften across the morph rather than transition crisply.

4. This is the linear-interpolation midpoint magnitude problem Concept 2 mentioned. The chord between two unit-ish vectors passes closer to the origin than either endpoint; the decoder maps low-magnitude latents to outputs that are closer to the dataset mean, which tends to look more muted. Slerp avoids it.

# Choppy
frames_5 = generate_frames(decoder, z1, z2, num_frames=5)
imageio.mimsave('choppy.gif', frames_5, fps=5)

# Smooth
frames_60 = generate_frames(decoder, z1, z2, num_frames=60)
imageio.mimsave('smooth.gif', frames_60, fps=30)

for i in range(30):
    t = i / 29
    z_lin = (1 - t) * z1 + t * z2
    z_slp = slerp(z1, z2, t)
    # decode both, save as side-by-side image

import torch

def linear_interpolate(z1, z2, t):
    # TODO: return (1 - t) * z1 + t * z2
    pass

def slerp(z1, z2, t):
    # TODO:
    #   1. Normalise z1, z2
    #   2. omega = acos(clamp(z1_norm . z2_norm, -1, 1))
    #   3. If omega is tiny, fall back to linear
    #   4. Apply slerp formula: sin((1-t)*omega)/sin(omega) * z1 + sin(t*omega)/sin(omega) * z2
    pass

if __name__ == '__main__':
    z1 = torch.randn(64)
    z2 = torch.randn(64)
    assert torch.allclose(linear_interpolate(z1, z2, 0.0), z1)
    assert torch.allclose(linear_interpolate(z1, z2, 1.0), z2)
    assert slerp(z1, z2, 0.5).shape == z1.shape
    print("All tests passed!")

return (1 - t) * z1 + t * z2

omega = torch.acos(torch.clamp(torch.sum(z1_norm * z2_norm), -1.0, 1.0))
c1 = torch.sin((1 - t) * omega) / torch.sin(omega)
c2 = torch.sin(t * omega) / torch.sin(omega)
return c1 * z1 + c2 * z2

import torch

def linear_interpolate(z1, z2, t):
    return (1 - t) * z1 + t * z2

def slerp(z1, z2, t):
    z1_norm = z1 / (torch.norm(z1) + 1e-8)
    z2_norm = z2 / (torch.norm(z2) + 1e-8)

    dot = torch.clamp(torch.sum(z1_norm * z2_norm), -1.0, 1.0)
    omega = torch.acos(dot)

    if omega < 1e-6:
        return linear_interpolate(z1, z2, t)

    sin_omega = torch.sin(omega)
    c1 = torch.sin((1 - t) * omega) / sin_omega
    c2 = torch.sin(t * omega) / sin_omega
    return c1 * z1 + c2 * z2

def ease_in_out(t):
    return 4*t*t*t if t < 0.5 else 1 - pow(-2*t + 2, 3) / 2

Summary

Common pitfalls

• Output range mismatch — the VAE decoder emits values in [-1, 1]; forgetting the (img + 1) / 2 rescale gives you black or noise frames depending on whether you also clamp.
• Missing batch dimension — the decoder expects (batch, latent_dim), not (latent_dim,). z.unsqueeze(0) is what fixes the cryptic shape mismatch error.
• Duplicate frames at keypoints — trim the last frame of every segment except the final one, or your loop visibly stutters at every transition.
• Slerp without the small-omega fallback — when the two endpoints are nearly parallel, sin(omega) approaches zero and you get NaN frames mid-animation.
• GIF file bloat — 30+ frames at high resolution can hit several megabytes fast; balance perceived smoothness against bandwidth.
