8.2.2 Infinite Blossom

Overview

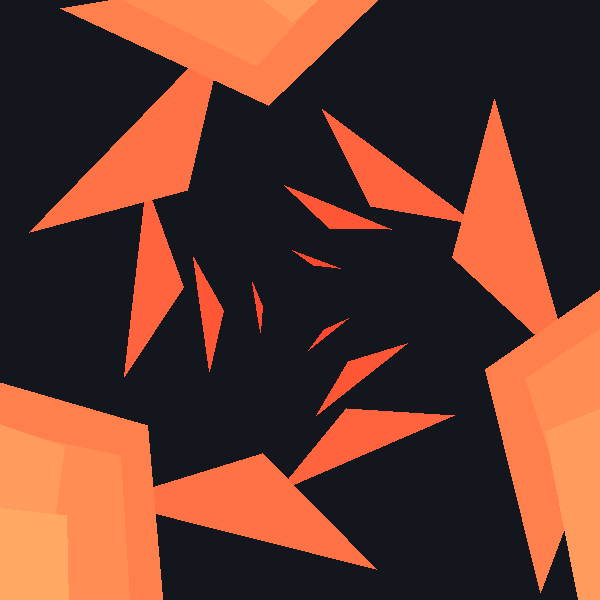

The infinite blossom is the opposite of the flower assembly (8.2.1): instead of N pre-placed tiles converging to a finished image, new objects spawn continuously at the canvas edge, each one with its own lifetime. There is no end state. The animation runs forever, and yet the canvas stays bounded because every object eventually disappears at the centre.

Mechanically the trick is to keep objects in polar coordinates — angle and distance from a fixed centre — and update both per frame: rotate the angle slightly (causing visual spiraling) and decrease the distance (causing inward motion). When distance == 0, retire the object. Spawn a fresh batch every N frames, and the pipeline becomes a steady flow. The same pattern drives every screensaver, every particle-effect emitter in game engines, and every “infinite spiral” video that fascinates an Instagram feed.

Learning objectives

1. Represent moving objects in polar coordinates and update angle/distance per frame.
2. Implement a spawn-and-retire object lifecycle: new objects appear at the edge; old ones disappear in the centre.
3. Render each object using polar-to-Cartesian conversion with cos(θ) * r, sin(θ) * r.
4. Compose an “infinite” animation by ensuring the steady-state object count stays bounded.

Quick start — the infinite blossom

import math
import numpy as np
from PIL import Image, ImageDraw

INNER, CANVAS, SPAWN_R, FRAMES = 800, 600, 320, 180

class Petal:
    def __init__(self, angle_deg, dist):
        self.angle = angle_deg
        self.dist = dist
    def update(self):
        self.angle = (self.angle + 1.2) % 360
        self.dist -= 1.5
    def polar(self, ang, d):
        r = math.radians(ang)
        return int(math.cos(r) * d), int(math.sin(r) * d)
    def draw(self, draw):
        m = 1.2 + self.dist / 280
        v = [self.polar(self.angle, self.dist),
             self.polar(self.angle - 30, self.dist * m),
             self.polar(self.angle + 30, self.dist * m)]
        ox, oy = INNER // 2, INNER // 2
        col = (255, int(60 + 110 * self.dist / SPAWN_R), int(40 + 60 * self.dist / SPAWN_R))
        draw.polygon([(x + ox, y + oy) for x, y in v], fill=col)

Core concepts

Concept 1 — Polar coordinates as the natural state

For motion that’s rotational + radial, polar coordinates (angle, distance) are vastly simpler than Cartesian (x, y). Rotating an object becomes “add to the angle”; moving it inward becomes “subtract from the distance.” Per-frame update is a single addition per axis.

def update(self):
    self.angle = (self.angle + 1.2) % 360   # rotate 1.2° per frame
    self.dist -= 1.5                         # 1.5 px inward per frame

The trade-off: rendering needs a polar-to-Cartesian conversion at every draw call. For a thousand objects per frame the cost is negligible — the conversion is two cos/sin calls. Same trick the spiral lesson (2.2.2) and the harmonograph lesson (2.3.3) used; same trick every 2D physics engine uses when objects orbit a centre.

Concept 2 — The spawn-and-retire lifecycle

For the animation to last forever without unbounded memory, objects must retire when they finish their lifecycle. We keep a list of active petals, update them, then filter out the ones with dist <= 0:

for f in range(FRAMES):
    if f % 12 == 0:                                 # spawn cadence
        petals += create_three(SPAWN_RADIUS,
                                rng.uniform(0, 360))
    for p in petals:
        p.update()
        p.draw(draw)
    petals = [p for p in petals if p.dist > 0]      # retire arrived

The steady-state count is determined by spawn rate × lifetime. With petals spawning in groups of 3 every 12 frames and a lifetime of SPAWN_RADIUS / 1.5 ≈ 213 frames, you can expect about 3 * 213 / 12 ≈ 53 petals on screen at any moment.

Concept 3 — Rendering: oversize canvas + centre crop

When new petals spawn at the edge, the visible window would show them appearing out of nowhere — a discontinuity. The fix: render on a canvas larger than the visible viewport, then crop the centre.

INNER, CANVAS = 800, 600
crop_box = ((INNER - CANVAS) // 2, (INNER - CANVAS) // 2,
            (INNER - CANVAS) // 2 + CANVAS, (INNER - CANVAS) // 2 + CANVAS)
frame.crop(crop_box)

The 100 px margin on each side hides the spawn moment: by the time petals enter the visible 600×600 viewport, they have already travelled enough that their motion looks continuous. Every infinite-emitter animation needs some version of this trick — render bigger, crop the centre, hide the boundary.

Exercises

Three exercises in Execute → Modify → Create order: render the loop, sweep parameters, then build a multi-direction emitter.

import math, numpy as np
from PIL import Image, ImageDraw

class Particle:
    def __init__(self, angle_deg, dist, shape, color):
        self.angle = angle_deg
        self.dist = dist
        self.shape = shape       # 'tri', 'circle', or 'square'
        self.color = color

    def update(self):
        # TODO 1: same as before — rotate angle, decrease distance
        pass

    def draw(self, draw, centre):
        # TODO 2: dispatch on self.shape, draw the appropriate primitive
        pass

# Spawn loop: pick a random shape from ['tri', 'circle', 'square']
# and a random colour for each new particle.

def draw(self, draw, centre):
    r = math.radians(self.angle)
    x = int(math.cos(r) * self.dist) + centre[0]
    y = int(math.sin(r) * self.dist) + centre[1]
    if self.shape == 'circle':
        draw.ellipse([x - 8, y - 8, x + 8, y + 8], fill=self.color)
    elif self.shape == 'square':
        draw.rectangle([x - 7, y - 7, x + 7, y + 7], fill=self.color)
    elif self.shape == 'tri':
        # triangle pointing outward
        verts = [(x, y - 10), (x - 8, y + 6), (x + 8, y + 6)]
        draw.polygon(verts, fill=self.color)

hue = rng.uniform(0, 360)
# HSV → RGB (cheap implementation)
h = hue / 60
c = 200
x = c * (1 - abs((h % 2) - 1))
if h < 1:   r, g, b = c, x, 0
elif h < 2: r, g, b = x, c, 0
elif h < 3: r, g, b = 0, c, x
elif h < 4: r, g, b = 0, x, c
elif h < 5: r, g, b = x, 0, c
else:       r, g, b = c, 0, x
color = (int(r + 55), int(g + 55), int(b + 55))

Downloads

Summary

Common pitfalls to avoid

• Cartesian per-frame update. Working in (x, y) for rotation requires trig at every update; polar makes the update one addition. Always pick the coordinate system that makes the update cheap.
• Spawn-inside-viewport. Visible “pop” when objects materialise on screen. Spawn beyond the crop window.
• Unbounded object list. Forgetting to retire arrived objects leaks memory and slows down the animation over time.
• Frame-loop count desynchronised with spawn cadence. If FRAMES % SPAWN_PERIOD != 0, the GIF loop point may show a visible jump. Either match the periods or use a long enough total to make the discontinuity sub-frame.
