8.3.1 Star Wars Titles

Overview

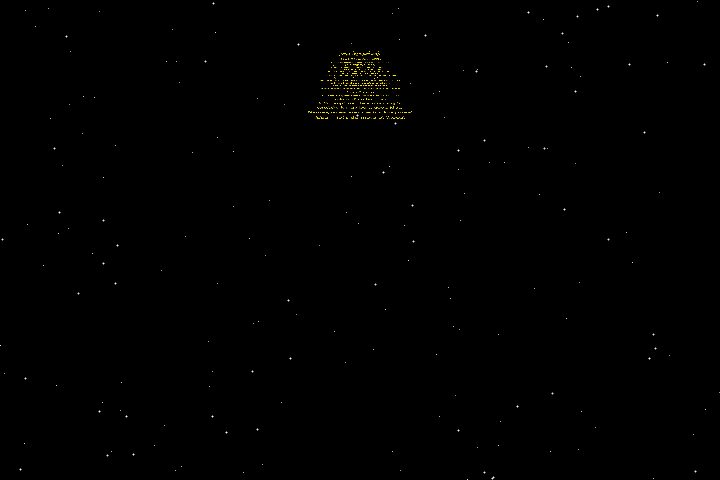

The opening crawl of Star Wars: A New Hope (1977) is one of the most recognisable shots in cinema. Yellow capitalised text floats up into deep space, receding into a vanishing point so the lines at the top of the screen are smaller and closer together than the lines at the bottom. The technical achievement is not the typeface — it’s the perspective projection. The original 1977 sequence was shot on an animation stand with a paper crawl card pulled physically across a glass plate; modern recreations are a few lines of NumPy.

The trick is to invert the perspective transformation: for every pixel (x, y) on the output screen, compute the corresponding pixel (x0, y0) in the input text bitmap. Run the computation once at startup; reuse the index arrays every frame; scroll the text by shifting y0. The math comes from the optics of a tilted plane viewed from a fixed observer — geometry the medieval Italian painters worked out by hand in the 15th century [1].

Learning objectives

1. Derive the perspective transformation: a tilted plane projected through a single-point pinhole.
2. Implement inverse perspective sampling: for each output pixel, look up its source pixel in a tall unprojected bitmap.
3. Precompute index arrays so the per-frame work is just fancy-indexing — no trigonometry in the hot loop.
4. Add a starfield background and composite the projected text over it to recreate the iconic look.

Quick start — perspective scroll

import numpy as np
from PIL import Image, ImageDraw, ImageFont

XSIZE, YSIZE = 720, 480
PERSPECTIVE_C = 220

def prepare_perspective(c=PERSPECTIVE_C):
    indices = {}
    xx = np.arange(XSIZE)
    for yy in range(1, YSIZE):
        y = 1 - yy / YSIZE                           # 0 at bottom, 1 at top
        y0 = int(-y * c / (y - 1))                   # source row offset
        x_off = xx - XSIZE // 2
        x_src = (x_off - x_off * y / (y - 1)).astype(int) + XSIZE // 2
        valid = (x_src >= 0) & (x_src < XSIZE)
        indices[yy] = (y0, x_src[valid], xx[valid])
    return indices

Core concepts

Concept 1 — The perspective transformation

A tilted plane viewed through a pinhole produces lines that converge toward a vanishing point. The mathematics: for a vertical screen coordinate $y$ in $[0, 1]$ (with $0$ at the vanishing point at the top of the screen and $1$ at the bottom), the source row $y_0$ on the unprojected text is

$y_0 = -y \cdot c / (y - 1)$

where $c$ is a constant controlling the “depth” of the scene. Larger $c$ makes the trapezoid taller; smaller $c$ makes it flatter. Picking $c \approx 200$ gives the classic Star Wars trapezoid aspect ratio.

The horizontal source coordinate scales similarly: pixels at the edge of the screen pull toward the centre as we move up the trapezoid. The full formula:

$x_0 = x_c - x_c \cdot y / (y - 1)$, where $x_c = x - W/2$ is the centred horizontal pixel coordinate.

Concept 2 — Inverse sampling beats forward projection

Two approaches to mapping pixels through a perspective:

• Forward: for each source pixel (x0, y0), compute (x, y) on screen. Sets up gaps and overlapping pixels.
• Inverse: for each output pixel (x, y), compute the source (x0, y0). Always paints every visible pixel exactly once.

Inverse is the standard graphics-pipeline approach for any non-trivial coordinate transform — used in every texture sampler in every shader. Forward sampling is faster for sparse transforms (line drawing, particle render) but produces gaps for any zoom or perspective.

# For each screen row yy in 1..YSIZE:
#   compute y0 = source row index
#   compute x0_array = source columns for each screen column
#   frame[yy, valid_x] = msg[y0, x0_array[valid]]

Concept 3 — Precomputing the index arrays

For every output row yy, the source row index y0 is the same every frame — only the scroll offset changes. So precompute a dictionary mapping yy → (y0, source_x_indices, screen_x_indices). The frame loop becomes:

indices = prepare_perspective()
for f in range(N_FRAMES):
    frame = starfield.copy()
    ofs = f * scroll_per_frame
    for yy, (y0, src_x, dst_x) in indices.items():
        src_y = ofs - y0 + text_h - YSIZE
        if 0 <= src_y < text_h:
            frame[yy, dst_x] = msg[src_y, src_x]
    frames.append(Image.fromarray(frame))

This loop runs at hundreds of FPS on a modern machine: every operation is a NumPy fancy-index. No cos/sin/atan per frame — the geometry was solved once during setup.

Exercises

Three exercises in Execute → Modify → Create order: run the scroll, sweep parameters, then add a starfield with twinkling.

import numpy as np
from PIL import Image

def make_twinkling_starfield(seed, frame, n_stars=180, xsize=720, ysize=480):
    rng = np.random.default_rng(seed)
    field = np.zeros((ysize, xsize, 3), dtype=np.uint8)

    # TODO 1: generate star positions (same for all frames)
    # ys, xs, base_b = ...

    # TODO 2: per-frame brightness offset
    # twinkle = sin(frame * 2 * pi / 60 + phase_per_star) * 30
    # actual_b = clip(base_b + twinkle, 100, 255)

    # TODO 3: write stars at (ys, xs) with brightness actual_b
    return field

ys = rng.integers(0, ysize, n_stars)
xs = rng.integers(0, xsize, n_stars)
base_b = rng.integers(140, 255, n_stars)
phases = rng.uniform(0, 2 * np.pi, n_stars)

twinkle = np.sin(frame * 2 * np.pi / 60 + phases) * 40
actual_b = np.clip(base_b + twinkle, 80, 255).astype(np.uint8)
field[ys, xs] = np.stack([actual_b] * 3, axis=-1)

Downloads

Summary

Common pitfalls to avoid

• Forward projection. Trying to project source onto screen produces gaps and overlaps. Always go inverse.
• Per-frame index computation. Recomputing the perspective indices every frame is 100× slower than necessary. Compute once, reuse.
• Too-small text bitmap. If the bitmap doesn’t have enough vertical headroom, the scroll runs out of content. Always size it generously (2-3× screen height + total scroll distance).
• Wrong y-axis convention. Mixing screen-y (top-down) with mathematical-y (bottom-up) is the most common bug in any perspective code. Pick one and stick with it.
