3.1.3 Nonlinear Distortions

Overview

The last lesson stayed inside the affine family — straight lines stayed straight. Nonlinear distortions break that rule on purpose: vertical lines become wavy, circles bulge out into fish-eye shapes, and the interior of an image swirls around its centre. The unifying technique is coordinate remapping: rather than transforming the pixels with a matrix, you transform the coordinates with a function, then read the pixel at the new location. The mechanic is the same one used by lens-correction software, by photo-editing filters like “twirl” and “spherize,” and by every CRT-distortion shader [1, 2].

Learning objectives

1. Use inverse mapping — for each output pixel, compute where to read from in the input — and explain why it avoids holes.

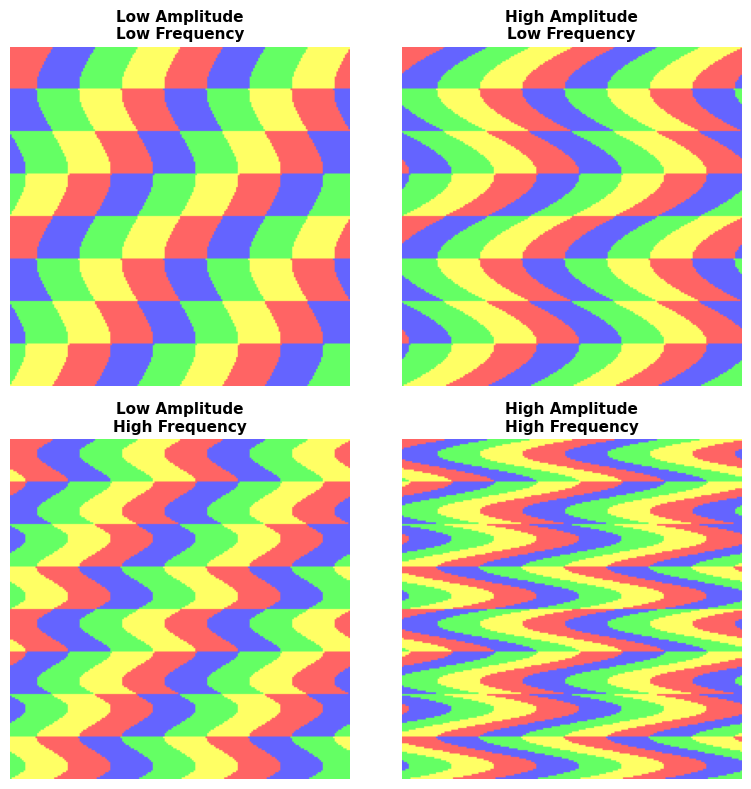

2. Implement wave distortion with a sinusoidal offset, tuning amplitude and frequency independently.
3. Recognise barrel and swirl as two flavours of radial remapping that share a polar-coordinate skeleton.
4. Combine two perpendicular waves into a wobble effect, picking different frequencies for richer patterns.

Quick start — a horizontal sine wave

import numpy as np
from PIL import Image

# Build a small checkerboard so the distortion is easy to see
size = 400
tile = 50
image = np.zeros((size, size, 3), dtype=np.uint8)
colors = [(255, 100, 100), (100, 100, 255), (100, 255, 100), (255, 255, 100)]
for r in range(size // tile):
    for c in range(size // tile):
        image[r*tile:(r+1)*tile, c*tile:(c+1)*tile] = colors[(r + c) % 4]

# Sine-wave horizontal shift — x depends on y
amplitude = 20
frequency = 3
distorted = np.zeros_like(image)
for y in range(size):
    offset = int(amplitude * np.sin(2 * np.pi * frequency * y / size))
    for x in range(size):
        source_x = (x + offset) % size
        distorted[y, x] = image[y, source_x]

Image.fromarray(distorted).save('wave_distortion.png')

Core concepts

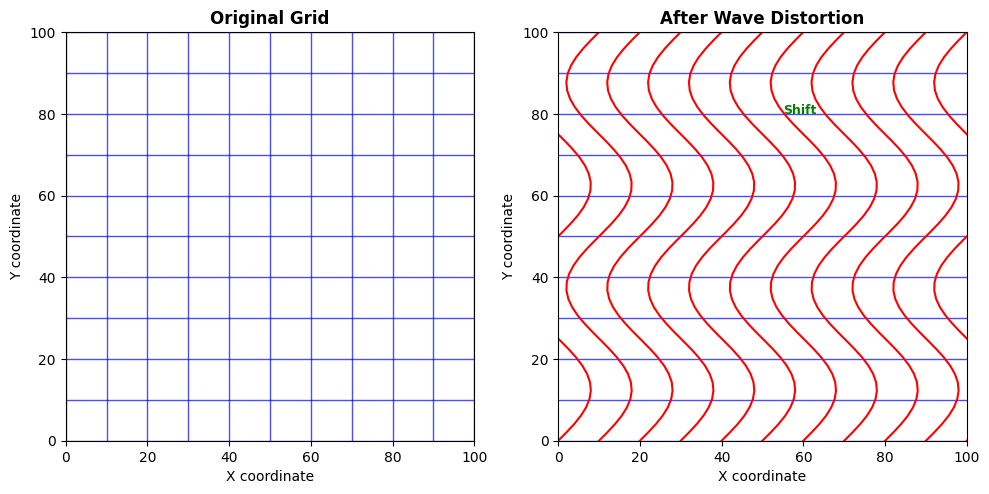

Concept 1 — Inverse mapping

The naive approach to image warping is forward mapping: take each input pixel, compute its new location, and write it there. The problem is rounding — most output positions get written multiple times, and some get written not at all. The result is full of black-pixel holes [3].

The standard fix is inverse mapping: loop over output pixels, and for each one compute the source coordinate to read from. Every output pixel gets a value, by construction. The source coordinate may be non-integer (rounded with int(...)) or out of bounds (wrapped with % size, or clipped with np.clip), but it always exists.

for y in range(height):
    for x in range(width):
        sx = f_x(x, y)     # where to read in the input
        sy = f_y(x, y)
        output[y, x] = source[int(sy) % height, int(sx) % width]

Concept 2 — Wave, barrel, swirl

Three classic remapping formulas cover most of what you will see in image filters.

Wave — add a sinusoidal offset to one axis:

source_x = (x + amplitude * sin(2*pi * freq * y / H)) % W

The y-dependence is what makes vertical edges wavy. Two superposed waves (source_x from y, source_y from x) give the wobble in Exercise 3.

Barrel (fish-eye) — push pixels radially outward, more strongly near the edges:

dx, dy = x - cx, y - cy
r2 = dx*dx + dy*dy
factor = 1 + strength * r2 / max_r2
source_x = cx + dx / factor
source_y = cy + dy / factor

A positive strength produces barrel distortion (image bulges outward, like looking through a glass sphere); a negative strength gives pincushion (image pulls inward at the corners) [4].

Swirl — rotate pixels around the centre by an angle that decreases with radius:

r = sqrt(dx*dx + dy*dy)
theta = atan2(dy, dx)
twist = twist_amount * (1 - r / max_r)
source_x = cx + r * cos(theta - twist)
source_y = cy + r * sin(theta - twist)

Centre pixels spin most; edge pixels barely move. The result is the classic “twirl filter” found in every image editor.

Concept 3 — Out-of-bounds and sampling

Distortions push source coordinates outside the input image. Two policies, both legitimate.

• Wrap with source_x % width — the image tiles. Good for waves, seamless textures, and the side-of-a-vinyl-record look. Bad for photos: faces wrap onto themselves.
• Clip with np.clip(source_x, 0, width - 1) — out-of-range pixels read from the nearest edge. The edges stretch into bands. Good for photos and lens effects.

Choosing the wrong policy is the most common visual bug in coordinate-remapping code. The wobbling checkerboard wraps cleanly because the input is already periodic; a face under the same wrap policy is going to look unsettling.

Exercises

Three exercises in Execute → Modify → Create order: run a single wave, swap axes/parameters, then build a 2-axis wobble from scratch.

for y in range(size):
    for x in range(size):
        offset = int(amplitude * np.sin(2 * np.pi * frequency * x / size))
        source_y = (y + offset) % size
        distorted[y, x] = image[source_y, x]

amplitude = 40

offset = int(amplitude * np.sin(2 * np.pi * frequency * (x + y) / size))
source_x = (x + offset) % size

CREATE III.

Two-axis wobble

Combine a horizontal wave (offsets source_x based on y) and a vertical wave (offsets source_y based on x). Use different frequencies for the two waves so the pattern does not repeat trivially.

python · exercise3_starter.py Copy

import numpy as np
from PIL import Image

size = 400
tile = 50
image = np.zeros((size, size, 3), dtype=np.uint8)
colors = [(255, 100, 100), (100, 100, 255), (100, 255, 100), (255, 255, 100)]
for r in range(size // tile):
    for c in range(size // tile):
        image[r*tile:(r+1)*tile, c*tile:(c+1)*tile] = colors[(r + c) % 4]

# TODO 1: pick amplitude + frequency for both axes (different freqs!)
# h_amp, h_freq = ...
# v_amp, v_freq = ...

distorted = np.zeros_like(image)
for y in range(size):
    for x in range(size):
        # TODO 2: compute h_offset (a function of y) and v_offset (a function of x).
        # TODO 3: combine into source_x and source_y, wrap with % size, and copy.
        pass

Image.fromarray(distorted).save('combined_waves.png')

Hint 1 — choose two frequencies

h_amp,  h_freq = 15, 3
v_amp,  v_freq = 15, 4

A 3:4 ratio is non-repeating across one cycle of either axis — that is what makes the pattern visually rich. Equal frequencies produce a simpler, more lattice-like wobble.

Hint 2 — the loop body

h_off = int(h_amp * np.sin(2 * np.pi * h_freq * y / size))
v_off = int(v_amp * np.sin(2 * np.pi * v_freq * x / size))
source_x = (x + h_off) % size
source_y = (y + v_off) % size
distorted[y, x] = image[source_y, source_x]

The horizontal wave contributes to source_x; the vertical wave contributes to source_y. Each wave only depends on the opposite axis.

Complete solution

python · exercise3_solution.py Copy

import numpy as np
from PIL import Image

size = 400
tile = 50
image = np.zeros((size, size, 3), dtype=np.uint8)
colors = [(255, 100, 100), (100, 100, 255), (100, 255, 100), (255, 255, 100)]
for r in range(size // tile):
    for c in range(size // tile):
        image[r*tile:(r+1)*tile, c*tile:(c+1)*tile] = colors[(r + c) % 4]

h_amp, h_freq = 15, 3
v_amp, v_freq = 15, 4

distorted = np.zeros_like(image)
for y in range(size):
    for x in range(size):
        h_off = int(h_amp * np.sin(2 * np.pi * h_freq * y / size))
        v_off = int(v_amp * np.sin(2 * np.pi * v_freq * x / size))
        source_x = (x + h_off) % size
        source_y = (y + v_off) % size
        distorted[y, x] = image[source_y, source_x]

Image.fromarray(distorted).save('combined_waves.png')

How it works:

• Two independent offsets cooperate: one only reads y, the other only reads x, so they are mathematically decoupled but combine in the final source coordinate.
• The 3:4 frequency ratio is the same idea as the Lissajous figures in 2.3.1 — small-integer non-equal ratios maximise visual interest.
• The wrap (% size) keeps the edges seamless. Try replacing it with np.clip and watch the corners turn into stretched bands instead.

Make it your own

• Replace the checkerboard input with a real photo (use np.array(Image.open('photo.jpg'))) and try wrap vs clip — wrap looks alien on faces.
• Add a third wave: source_x += amplitude * sin(2π · freq · (x + y) / size) for a diagonal ripple on top of the two-axis wobble.
• Decay the amplitude with distance from the centre: multiply each offset by 1 - r/r_max. The corners settle while the centre keeps wobbling.

Downloads

Summary

Common pitfalls to avoid

• Forward-mapping instead of inverse-mapping — the output ends up speckled with holes.
• Forgetting to convert source coordinates to int before indexing — Python list indexing with floats raises; NumPy fancy-indexing with floats silently misbehaves.
• Wrap vs clip mix-up — wrapping a photo makes faces fold onto themselves; clipping a tileable texture creates visible edges.
• Plain (x + offset) without % size on an offset that can go negative — Python’s % behaves correctly, but the same code in C-like languages flips signs.
• Inflating amplitude so much that the wave reads from far past the source image — at some point the pattern is all wraparound.
