3.3.2 Puzzle — Array Concatenation

Overview

np.vstack glues arrays top-to-bottom; np.hstack glues them side-by-side. Together they are NumPy’s “assemble images from pieces” pair — the same machinery that powers panorama stitching, contact sheets, and the diagnostic grids you have already built in this module [1, 2]. The mental model in this lesson is the jigsaw puzzle: every piece carries its own (h, w, 3) shape, and the dimension facing the seam must match for the stack to succeed. Once that constraint clicks, you can slice any image into quadrants, shuffle the pieces, and reassemble them — turning a documentary photo into an abstract collage with three NumPy calls.

Learning objectives

1. Predict the output shape of np.vstack and np.hstack from the input shapes.
2. Read NumPy’s error message when a stack fails — “all the input array dimensions except for the concatenation axis must match exactly” — and fix it.
3. Build rows with hstack, then stack the rows with vstack, to compose any rectangular grid.
4. Slice a photo into quadrants and reassemble them in scrambled order for an artistic puzzle.

Quick start — combine two puzzle pieces

import numpy as np
from PIL import Image

a = np.array(Image.open('a.png'))    # shape (133, 300, 3)
b = np.array(Image.open('b.png'))    # shape (133, 300, 3)

print('A:', a.shape, 'B:', b.shape)

row = np.hstack([a, b])               # heights match → widths add
print('Row:', row.shape)              # (133, 600, 3)

Image.fromarray(row).save('quick_start_output.png')

Core concepts

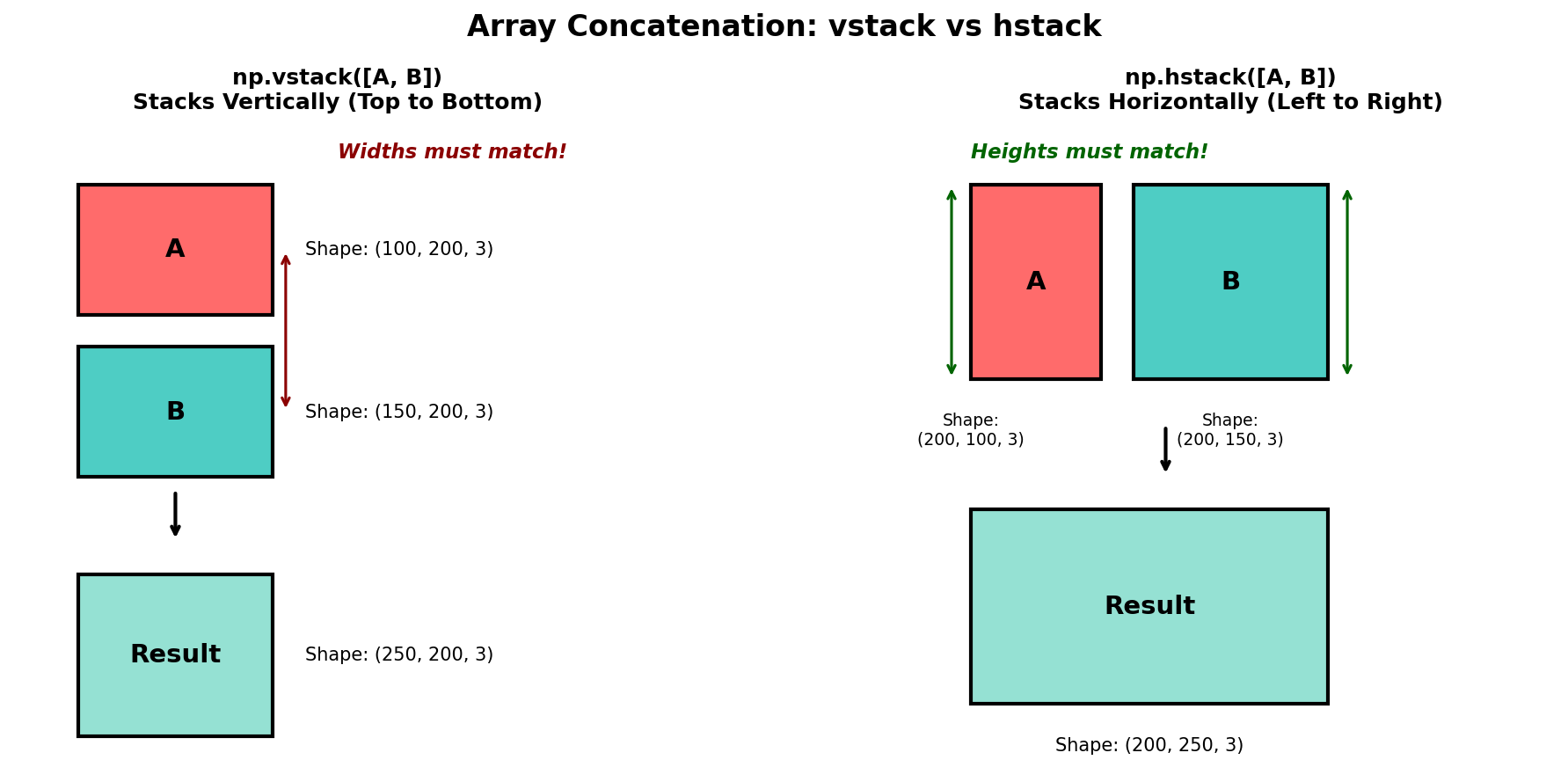

Concept 1 — vstack and hstack shape rules

vstack concatenates along axis 0 (height). For RGB images, all inputs must have the same width (and 3 channels):

(h1, W, 3) + (h2, W, 3) → (h1 + h2, W, 3)

hstack concatenates along axis 1 (width). All inputs must have the same height:

(H, w1, 3) + (H, w2, 3) → (H, w1 + w2, 3)

Two pieces with the same (H, W, 3) shape are stackable both ways — vstack doubles the height, hstack doubles the width [3].

Concept 2 — Compose with hstack first, then vstack

The reliable recipe for any rectangular grid is row-major:

top_row    = np.hstack([a, b])        # row 1
bottom_row = np.hstack([c, d])        # row 2
grid       = np.vstack([top_row, bottom_row])

It works for non-uniform rows too, as long as each row ends up the same total width:

top    = np.hstack([a, b])               # widths: 300 + 300 = 600
bottom = np.hstack([c, d, e])            # widths: 300 + 100 + 200 = 600
grid   = np.vstack([top, bottom])        # ✓ matching widths

The bottom row uses three pieces to match the top row’s two pieces — vstack only cares about the totals.

Concept 3 — Slice + concatenate = puzzle

The whole jigsaw lesson is in two operations: slice the image into pieces with NumPy indexing, reassemble with the stacks.

H, W = image.shape[:2]
mid_y, mid_x = H // 2, W // 2

tl = image[:mid_y, :mid_x]
tr = image[:mid_y, mid_x:]
bl = image[mid_y:, :mid_x]
br = image[mid_y:, mid_x:]

# Reassemble in order
reconstructed = np.vstack([
    np.hstack([tl, tr]),
    np.hstack([bl, br]),
])

# Or shuffle for an artistic puzzle
abstract = np.vstack([
    np.hstack([br, tl]),
    np.hstack([tr, bl]),
])

The shuffle is the artistic move: every piece keeps its content but lands in the wrong cell, and you get the disjointed look of late-Cubist collage from a single source photograph. Hannah Höch built a whole career on this [5].

Exercises

Three exercises in Execute → Modify → Create order: stack two pieces, build a 2×3 grid, then shuffle a real photo into an abstract puzzle.

row = np.hstack([d, e])           # (133, 300, 3)

col = np.vstack([a, c])           # (266, 300, 3)

top    = np.hstack([a, b])              # (133, 600)
bottom = np.hstack([c, d, e])           # (133, 100 + 200 + 300 = 600)
grid   = np.vstack([top, bottom])       # (266, 600)

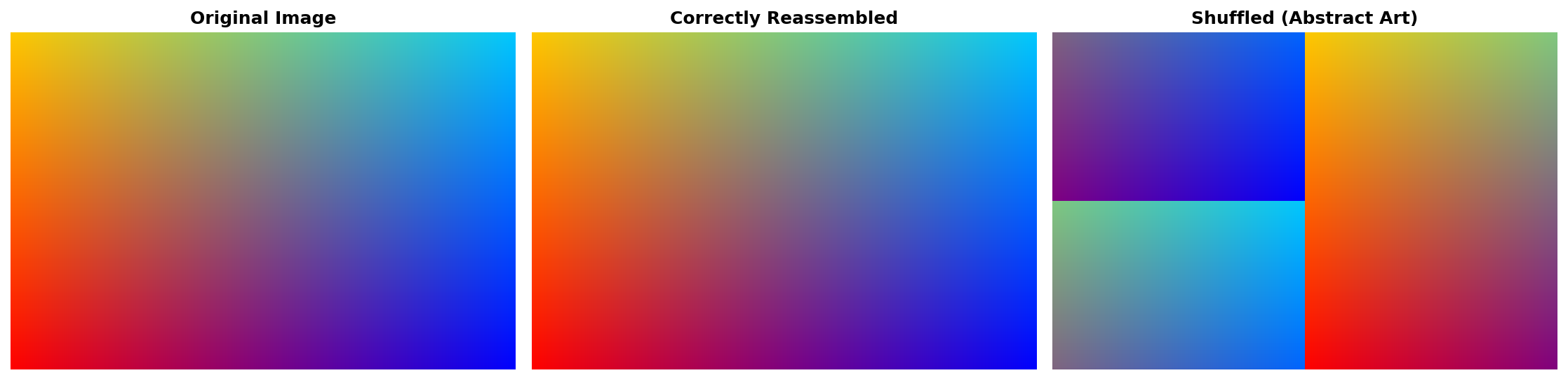

CREATE III.

Shuffle a photo into a puzzle

Take any image, slice it into four quadrants, and reassemble them in shuffled order for an abstract puzzle. The constraint: every quadrant must appear exactly once.

python · exercise3_starter.py Copy

import numpy as np
from PIL import Image

image = np.array(Image.open('source_image.png'))
H, W = image.shape[:2]
mid_y, mid_x = H // 2, W // 2

# TODO 1: slice into four quadrants.
# tl = image[..., ...]
# tr = ...
# bl = ...
# br = ...

# TODO 2: reassemble in scrambled order.
#         Each quadrant must appear exactly once.
# scrambled = np.vstack([
#     np.hstack([?, ?]),
#     np.hstack([?, ?]),
# ])

# TODO 3: verify the *non-scrambled* reassembly matches the original.
# correct = np.vstack([np.hstack([tl, tr]), np.hstack([bl, br])])
# assert np.array_equal(image, correct), 'reassembly does not match'

Image.fromarray(scrambled).save('shuffled_puzzle.png')

Hint 1 — quadrant slicing

tl = image[:mid_y, :mid_x]
tr = image[:mid_y, mid_x:]
bl = image[mid_y:, :mid_x]
br = image[mid_y:, mid_x:]

NumPy is [row, col] = [y, x]. The top half is [:mid_y], the bottom half is [mid_y:].

Hint 2 — a scrambled order

scrambled = np.vstack([
    np.hstack([br, tl]),       # bottom-right + top-left in row 1
    np.hstack([tr, bl]),       # top-right + bottom-left in row 2
])

Each quadrant appears exactly once; nothing repeats. The pieces have matching dimensions because they were sliced from a uniform mid-point, so the stacks succeed.

Complete solution

python · exercise3_solution.py Copy

import numpy as np
from PIL import Image

image = np.array(Image.open('source_image.png'))
H, W = image.shape[:2]
mid_y, mid_x = H // 2, W // 2

tl = image[:mid_y, :mid_x]
tr = image[:mid_y, mid_x:]
bl = image[mid_y:, :mid_x]
br = image[mid_y:, mid_x:]

# Verify correct order rebuilds the original
correct = np.vstack([np.hstack([tl, tr]), np.hstack([bl, br])])
assert np.array_equal(image, correct), 'reassembly does not match'

# Artistic shuffle
scrambled = np.vstack([
    np.hstack([br, tl]),
    np.hstack([tr, bl]),
])

Image.fromarray(scrambled).save('shuffled_puzzle.png')

How it works:

• The mid-point slice produces four exactly-equal quadrants (modulo any off-by-one from odd dimensions).
• The “correct” reassembly is the sanity check — if it does not equal the original, the slicing is buggy.
• The scramble is the same vstack(hstack(...)) recipe, just with different lookup order. The resulting array has identical pixel content, only re-tiled.

Make it your own

• Try a 3×3 split. Now there are 9! = 362 880 possible orderings; shuffle randomly with np.random.shuffle on a list of quadrants and you have a procedurally infinite puzzle gallery.
• Rotate each quadrant by 90° before stacking — np.rot90(piece, k) gives a fresh visual on top of the shuffle.
• Insert thin black gutters between the quadrants by vstacking/hstacking zero-arrays of the appropriate shape, the same way 3.3.1 added a 5-pixel gap.

Downloads

Summary

Common pitfalls to avoid

• np.hstack(a, b) instead of np.hstack([a, b]) — the function takes a list, not varargs.
• Mixing up the axes — vstack grows axis 0 (height), hstack grows axis 1 (width).
• Slicing with [:H, :W] instead of [0:H, 0:W] — equivalent, but the explicit form is more readable when teaching.
• Forgetting that quadrant slicing on an odd-sized image leaves the four pieces with off-by-one widths; pad with one zero column to recover symmetry.
• Comparing with == on whole arrays instead of np.array_equal(a, b) — == is per-element and produces an array, not a scalar.
