3.1.4 Kaleidoscope Effects

Overview

A kaleidoscope turns one wedge of pattern into a full circle through two mathematical moves: rotational repetition and mirror reflection. David Brewster built the first physical one in 1816 from two angled mirrors in a brass tube, and the optics of those mirrors are exactly the geometry we will recreate in code [1]. Every pixel asks the same question — what is my polar angle? — and the answer, after folding and mirroring, decides which colour it gets. That single algorithm scales from a clean 6-fold pattern to a multi-ring mandala by varying the wedge count per ring.

Learning objectives

1. Convert pixel positions to polar (radius, angle) with np.arctan2 and np.sqrt.
2. Map every angle into a single wedge using integer division by the wedge width, then a modulo.
3. Reflect angles in alternating wedges (wedge - angle_in_wedge) to add mirror symmetry on top of rotation.
4. Stack rings with different fold counts to compose a multi-symmetry mandala.

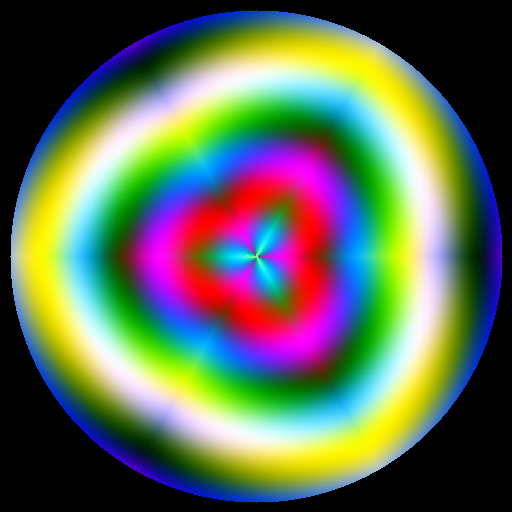

Quick start — a 6-fold kaleidoscope

import numpy as np
from PIL import Image

size = 512
center = size // 2
num_folds = 6
wedge_angle = 2 * np.pi / num_folds

# Polar coordinates for every pixel
y, x = np.ogrid[:size, :size]
dx, dy = x - center, y - center
angle = np.arctan2(dy, dx)
radius = np.sqrt(dx * dx + dy * dy)

# Fold all angles into one wedge
angle_pos = angle + np.pi                                # shift to [0, 2π)
wedge_idx = (angle_pos / wedge_angle).astype(int)
angle_in_wedge = angle_pos - wedge_idx * wedge_angle

# Mirror odd-numbered wedges
is_odd = wedge_idx % 2 == 1
angle_mirrored = np.where(is_odd, wedge_angle - angle_in_wedge, angle_in_wedge)

# Procedural colours that depend on the folded angle + radius
r_ch = ((np.sin(angle_mirrored * 3 + radius * 0.05) + 1) * 127).astype(np.uint8)
g_ch = ((np.cos(angle_mirrored * 2 + radius * 0.03) + 1) * 80 + 30).astype(np.uint8)
b_ch = ((np.sin(radius * 0.08) + 1) * 100 + 30).astype(np.uint8)

mask = radius <= center - 10
out = np.zeros((size, size, 3), dtype=np.uint8)
out[mask, 0] = r_ch[mask]; out[mask, 1] = g_ch[mask]; out[mask, 2] = b_ch[mask]

Image.fromarray(out).save('simple_kaleidoscope.png')

Core concepts

Concept 1 — Polar coordinates everywhere

The first move is to leave the Cartesian world. For every pixel (x, y), you compute the distance from the centre and the angle relative to the centre:

dx, dy = x - center, y - center
radius = np.sqrt(dx*dx + dy*dy)
angle  = np.arctan2(dy, dx)     # in [-π, π]

np.arctan2(dy, dx) is the four-quadrant inverse tangent — unlike arctan(dy / dx), it returns the correct quadrant. The output range is [-π, π]; we shift it to [0, 2π) with + np.pi so the integer division for the wedge index works cleanly [2].

Concept 2 — Folding all angles into one wedge

If you want N-fold rotational symmetry, the full circle splits into N wedges of angular width 2π/N. Every angle in the image gets mapped into the first wedge by integer-dividing by the wedge width and subtracting:

wedge_angle = 2 * np.pi / num_folds
wedge_idx = (angle_pos / wedge_angle).astype(int)    # 0..N-1
angle_in_wedge = angle_pos - wedge_idx * wedge_angle # 0..wedge_angle

Now every pixel in the image is described by (angle_in_wedge, radius), and you have N copies of the same wedge stacked around the centre. Sample a colour from those two coordinates and you already have a pinwheel — N-fold rotational symmetry without any explicit rotation [3].

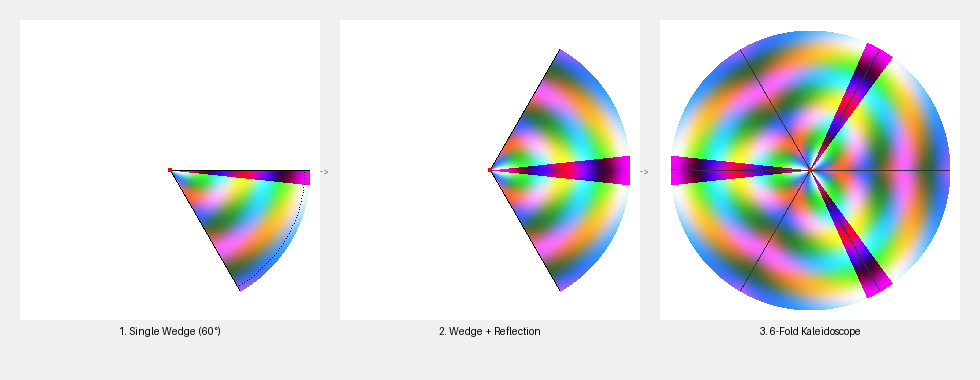

Concept 3 — The mirror trick (alternating reflection)

Pinwheels are only half of a real kaleidoscope. The other half is reflection: in a brass-tube kaleidoscope, two physical mirrors fold the pattern back on itself, so adjacent wedges are mirror images of each other rather than identical copies. The code version is a np.where on the parity of wedge_idx:

is_odd = wedge_idx % 2 == 1
angle_mirrored = np.where(is_odd, wedge_angle - angle_in_wedge, angle_in_wedge)

Even-numbered wedges get the un-reflected angle; odd-numbered wedges get the angle measured from the other edge of the wedge. The effect is bilateral symmetry along every wedge boundary, which is what makes the pattern read as a kaleidoscope rather than a pinwheel [4].

Exercises

Three exercises in Execute → Modify → Create order: run the 6-fold quick start, tune fold counts and palette, then assemble a multi-ring mandala.

num_folds = 8

r_ch = ((np.sin(angle_mirrored * 3 + radius * 0.05) + 1) * 60).astype(np.uint8)
b_ch = ((np.sin(radius * 0.08) + 1) * 127 + 60).astype(np.uint8)

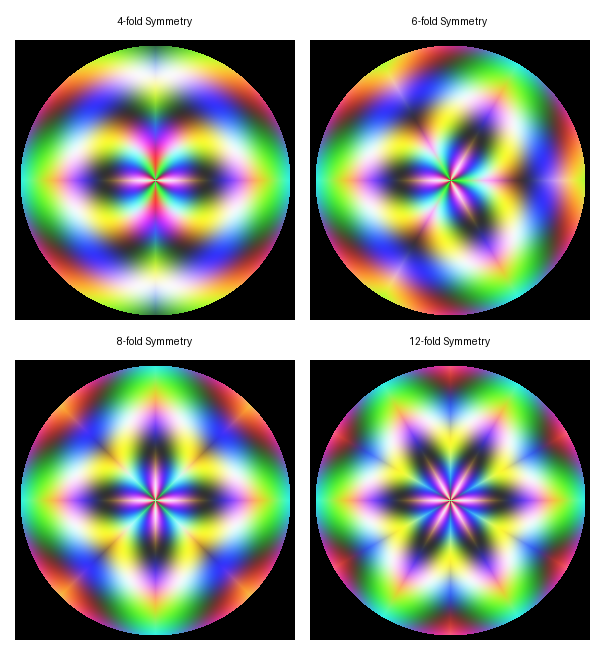

num_folds = 12
mask = radius <= center - 100

CREATE III.

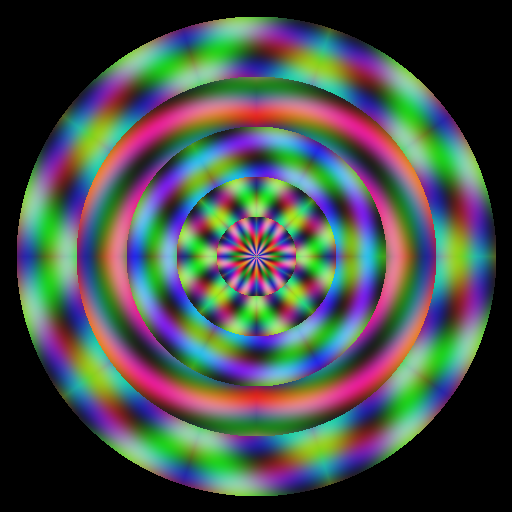

Three-ring mandala

Build a mandala from three concentric rings, each with a different fold count. Inner ring with the highest fold count, middle with medium, outer with the lowest. Each ring keeps the same wedge-fold-mirror algorithm; the only thing that changes between rings is num_folds and the inner/outer radius range.

python · exercise3_starter.py Copy

import numpy as np
from PIL import Image

SIZE = 512
CENTER = SIZE // 2

def ring(num_folds, inner_r, outer_r, color_scheme):
    """Return (ring_pixels, mask). Caller composites into the final canvas."""
    y, x = np.ogrid[:SIZE, :SIZE]
    dx, dy = x - CENTER, y - CENTER
    angle = np.arctan2(dy, dx)
    radius = np.sqrt(dx * dx + dy * dy)

    wedge_angle = 2 * np.pi / num_folds
    angle_pos = angle + np.pi
    wedge_idx = (angle_pos / wedge_angle).astype(int)
    angle_in_wedge = angle_pos - wedge_idx * wedge_angle
    is_odd = wedge_idx % 2 == 1
    angle_m = np.where(is_odd, wedge_angle - angle_in_wedge, angle_in_wedge)

    in_ring = (radius >= inner_r) & (radius < outer_r)

    r_mult, g_mult, b_mult = color_scheme
    ring_pos = (radius - inner_r) / max(outer_r - inner_r, 1)
    r = ((np.sin(angle_m * num_folds + ring_pos * np.pi * 2) + 1) * 100 * r_mult + 30).astype(np.uint8)
    g = ((np.cos(angle_m * (num_folds + 2))                    + 1) * 100 * g_mult + 30).astype(np.uint8)
    b = ((np.sin(ring_pos * np.pi * 3)                          + 1) * 100 * b_mult + 30).astype(np.uint8)

    out = np.zeros((SIZE, SIZE, 3), dtype=np.uint8)
    out[in_ring, 0] = r[in_ring]
    out[in_ring, 1] = g[in_ring]
    out[in_ring, 2] = b[in_ring]
    return out, in_ring

canvas = np.zeros((SIZE, SIZE, 3), dtype=np.uint8)

# TODO 1: choose ring specs (inner_r, outer_r, num_folds, color_scheme)
# rings = [...]

# TODO 2: composite each ring into canvas using its mask
# for spec in rings:
#     r, m = ring(*spec)
#     canvas[m] = r[m]

Image.fromarray(canvas).save('mandala.png')

Hint 1 — ring specs

Three contrasting rings, fold count decreasing outward, distinct palettes:

rings = [
    (12, 0,   60,  (1.0, 0.6, 0.8)),   # inner: 12-fold, pink
    ( 6, 60,  140, (0.5, 0.8, 1.0)),   # middle: 6-fold, blue
    ( 4, 140, 230, (1.0, 0.5, 0.6)),   # outer: 4-fold, coral
]

Each tuple matches the ring(...) signature: (num_folds, inner_r, outer_r, color_scheme).

Hint 2 — composite the rings

The masks are disjoint (no two rings overlap), so a plain overwrite is enough:

for spec in rings:
    pixels, mask = ring(*spec)
    canvas[mask] = pixels[mask]

If you wanted soft edges between rings you would use alpha blending, but the disjoint masks make that unnecessary here.

Complete solution

python · exercise3_solution.py Copy

import numpy as np
from PIL import Image

SIZE = 512
CENTER = SIZE // 2

def ring(num_folds, inner_r, outer_r, color_scheme):
    y, x = np.ogrid[:SIZE, :SIZE]
    dx, dy = x - CENTER, y - CENTER
    angle = np.arctan2(dy, dx)
    radius = np.sqrt(dx * dx + dy * dy)

    wedge_angle = 2 * np.pi / num_folds
    angle_pos = angle + np.pi
    wedge_idx = (angle_pos / wedge_angle).astype(int)
    angle_in_wedge = angle_pos - wedge_idx * wedge_angle
    is_odd = wedge_idx % 2 == 1
    angle_m = np.where(is_odd, wedge_angle - angle_in_wedge, angle_in_wedge)

    in_ring = (radius >= inner_r) & (radius < outer_r)
    r_mult, g_mult, b_mult = color_scheme
    ring_pos = (radius - inner_r) / max(outer_r - inner_r, 1)

    r = ((np.sin(angle_m * num_folds + ring_pos * np.pi * 2) + 1) * 100 * r_mult + 30).astype(np.uint8)
    g = ((np.cos(angle_m * (num_folds + 2))                    + 1) * 100 * g_mult + 30).astype(np.uint8)
    b = ((np.sin(ring_pos * np.pi * 3)                          + 1) * 100 * b_mult + 30).astype(np.uint8)

    out = np.zeros((SIZE, SIZE, 3), dtype=np.uint8)
    out[in_ring, 0] = r[in_ring]
    out[in_ring, 1] = g[in_ring]
    out[in_ring, 2] = b[in_ring]
    return out, in_ring

canvas = np.zeros((SIZE, SIZE, 3), dtype=np.uint8)
rings = [
    (12, 0,   60,  (1.0, 0.6, 0.8)),
    ( 6, 60,  140, (0.5, 0.8, 1.0)),
    ( 4, 140, 230, (1.0, 0.5, 0.6)),
]
for spec in rings:
    pixels, mask = ring(*spec)
    canvas[mask] = pixels[mask]

Image.fromarray(canvas).save('mandala.png')

How it works:

• ring(...) runs the full fold + mirror computation for every pixel, then a Boolean mask keeps only the pixels inside [inner_r, outer_r).
• Pixels outside the ring stay zero. Compositing is a plain canvas[mask] = pixels[mask] — no blending needed because the masks are disjoint.
• Decreasing fold counts outward makes the centre look like a fine star and the edge look like a bold cross. Increasing fold counts outward would do the opposite.

Make it your own

• Animate num_folds per ring over time and save 60 frames as a GIF — the mandala morphs through symmetries.
• Replace radius >= inner_r with radius >= inner_r + 5 * sin(angle * num_folds) for petalled ring boundaries.
• Pipe the kaleidoscope through the swirl distortion from 3.1.3 for a folded, twirling pattern.

Downloads

Summary

Common pitfalls to avoid

• Forgetting to shift np.arctan2 output from [-π, π] to [0, 2π) — the wedge index goes negative and indexing breaks.
• Casting wedge_idx with int() instead of .astype(int) — works for a scalar but crashes on the NumPy array.
• Skipping the is_odd mirror — you get a pinwheel (rotation only), not a kaleidoscope.
• Sampling the colour function from (x, y) instead of (angle_mirrored, radius) — the symmetry is lost; the colour ignores the fold.
• Forgetting the circular mask — the rectangular canvas corners show un-folded artefacts.
